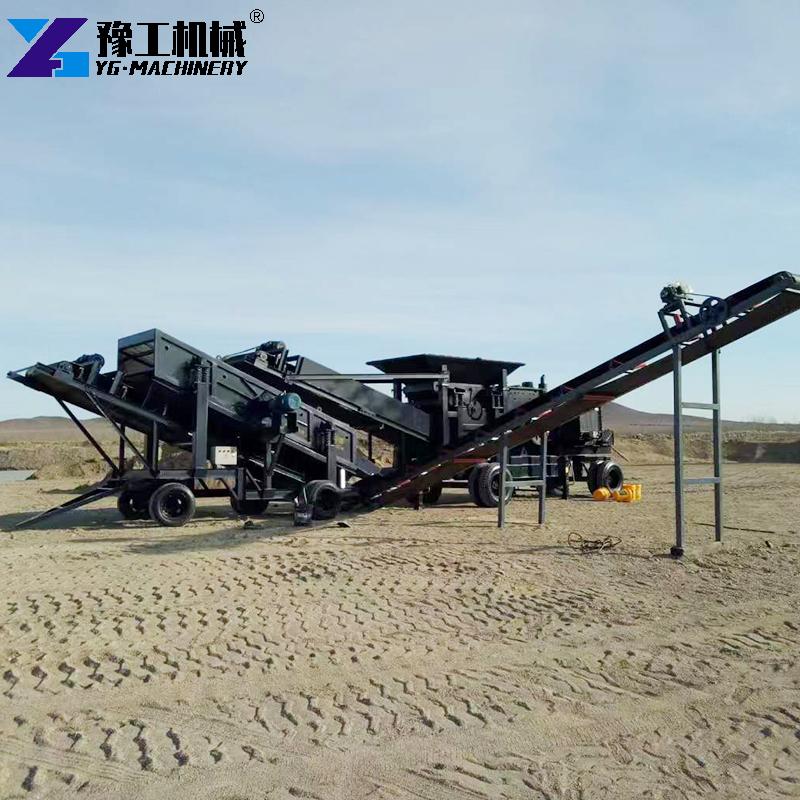

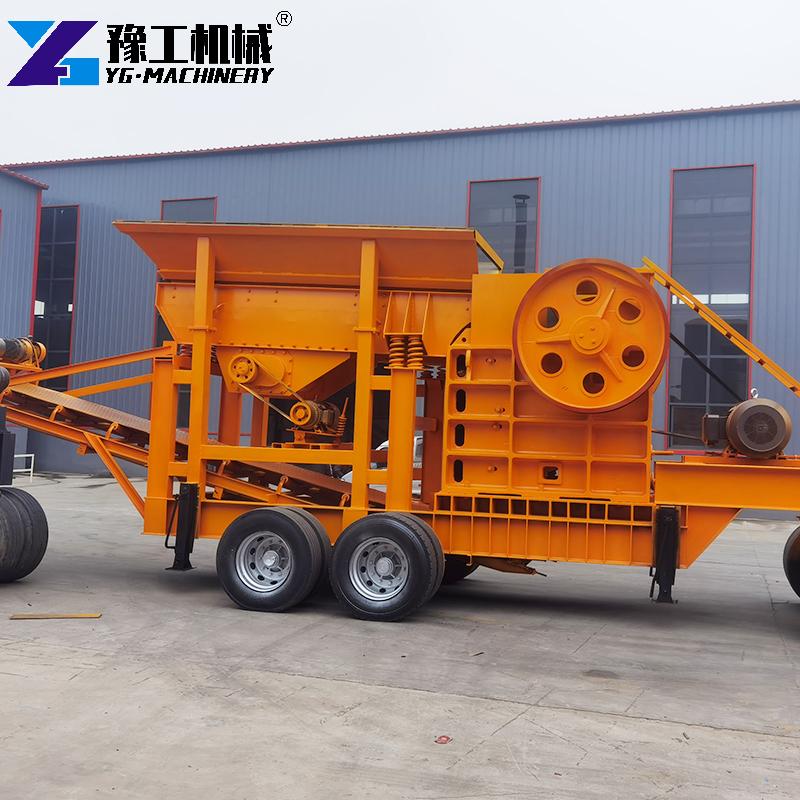

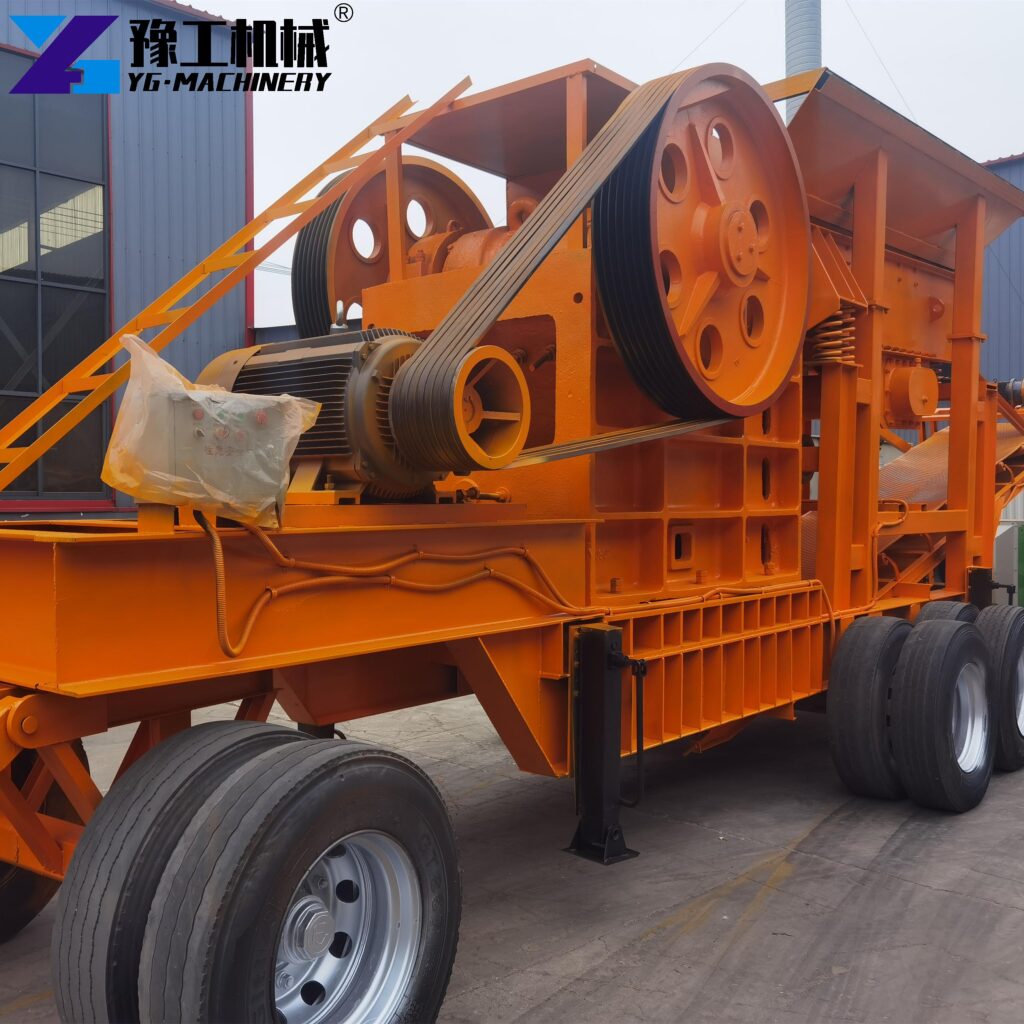

Mobile crushing station is an all-in-one material processing equipment that integrates feeding, crushing, conveying and intelligent control systems, specially designed for on-site crushing operations in mining, construction, resource recycling and other fields. It gets rid of the dependence on fixed infrastructure and supports rapid transfer between different working sites, providing a flexible and efficient crushing solution for small and medium-sized projects as well as large-scale production lines. This integrated mobile crushing plant adapts to diverse working conditions and material types, helping customers improve on-site efficiency and reduce comprehensive operation costs.
Parameters of Mobile Crushing Station
| Parameter | 800×800 | 800×1000 | 1000×1200 | 1200×1200 |
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 |
| Motor Power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G |
| Diesel Power | 195HP | 195HP | 260HP | 330HP |
| Hopper | 3500×1800×8mm | 3600×2200×8mm | 3600×2200×8mm | 3800×2200×8mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg |
| Total Weight | 10t | 12.5t | 14t | 19t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m |
| Belt Conveyor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw |
| Tyre Model×Number | 1100×8pcs | 1100×8pcs | 1100×8pcs | 1000×12pcs |
| Sand Capacity | 30t | 45t | 55t | 65t |
| Stone Capacity | 50t | 70t | 80t | 90t |
| Overall Size | 102.83.5m | 112.83.5m | 11.52.83.5m | 1233.6m |
Core Advantages of Mobile Crushing Station
1. High integration & no foundation required
Integrated assembly of core components eliminates on-site construction and installation, enabling immediate production upon arrival at the site.
2. Strong mobility & flexible transfer

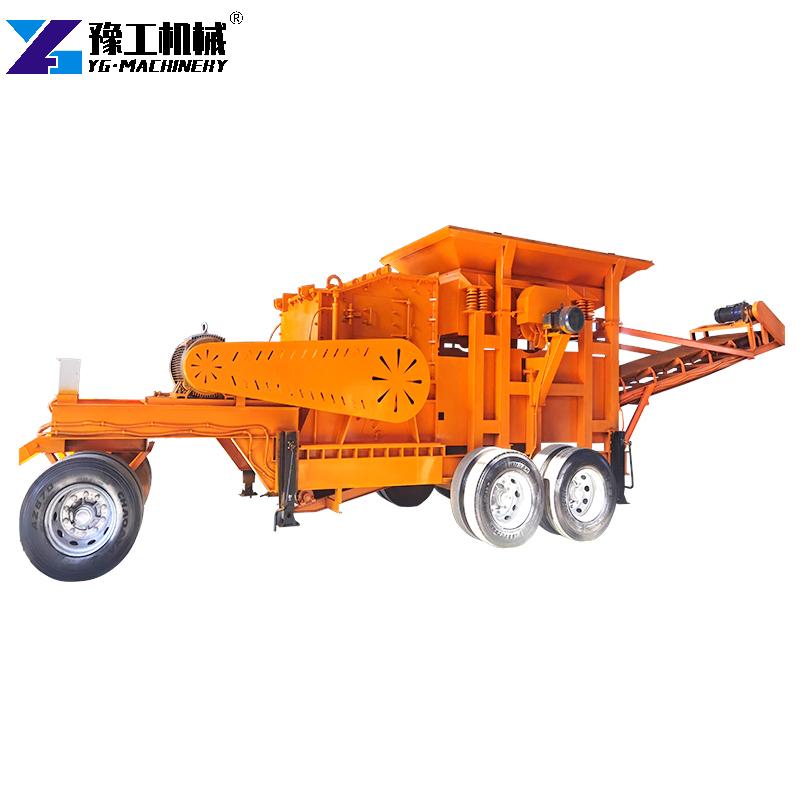

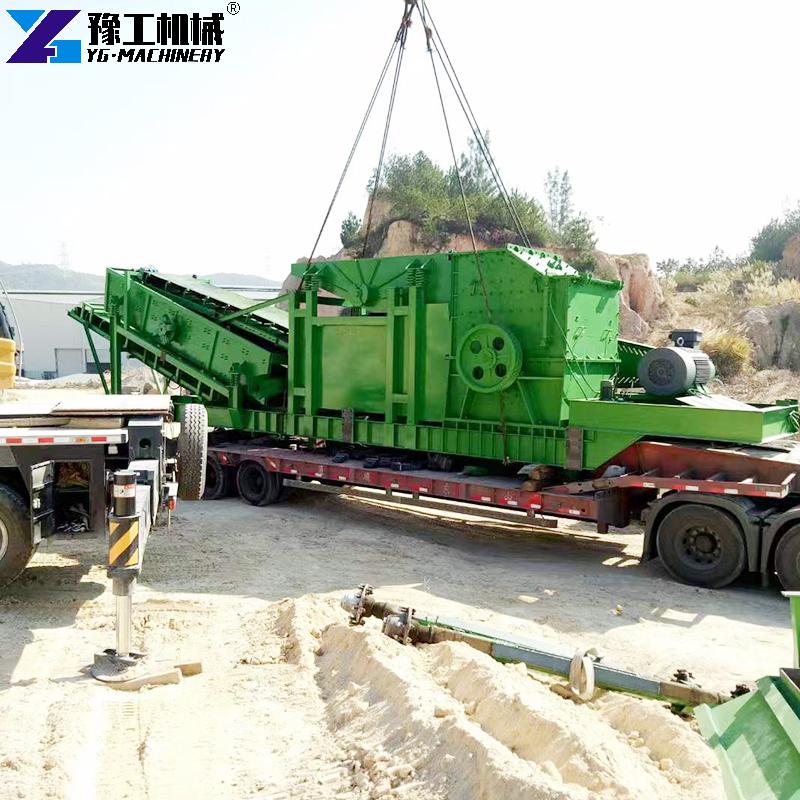

Wheel-type models adapt to public road transportation, while crawler-type models have excellent off-road passing ability, suitable for mines, narrow sites and urban construction areas.
3. Stable crushing & uniform finished products
Optimized crushing cavity design improves material pass-through rate, with stable particle size and high usability of finished materials.
4. Intelligent control & easy operation
Equipped with centralized control system to realize one-key start-stop, parameter adjustment and fault warning, reducing manual operation difficulty.
5. Wide material adaptability
Compatible with hard rock, ore, construction waste, limestone and other materials, with configurable crushing hosts for different hardness.
Application Scenarios
- Mining crushing
Applied to open-pit mines, ore preliminary processing and on-site crushing of various metal and non-metal ores.
- Mobile crushing station for construction waste
Realizes on-site reduction and recycling of concrete blocks, bricks and other construction wastes, reducing transportation and landfill costs.
- Aggregate production
Provides standardized stones and aggregates for road, bridge, construction and infrastructure projects.
- Engineering construction
Adapts to emergency projects, narrow construction sites and short-term processing tasks with rapid deployment capacity.
- Resource recycling
Handles tailings, slag and other industrial wastes to realize resource reutilization.
Frequently Asked Questions
Wheeled models are suitable for flat sites and frequent road transfers; crawler models are recommended for mines, muddy and rugged terrains. We will provide targeted suggestions according to your site conditions.

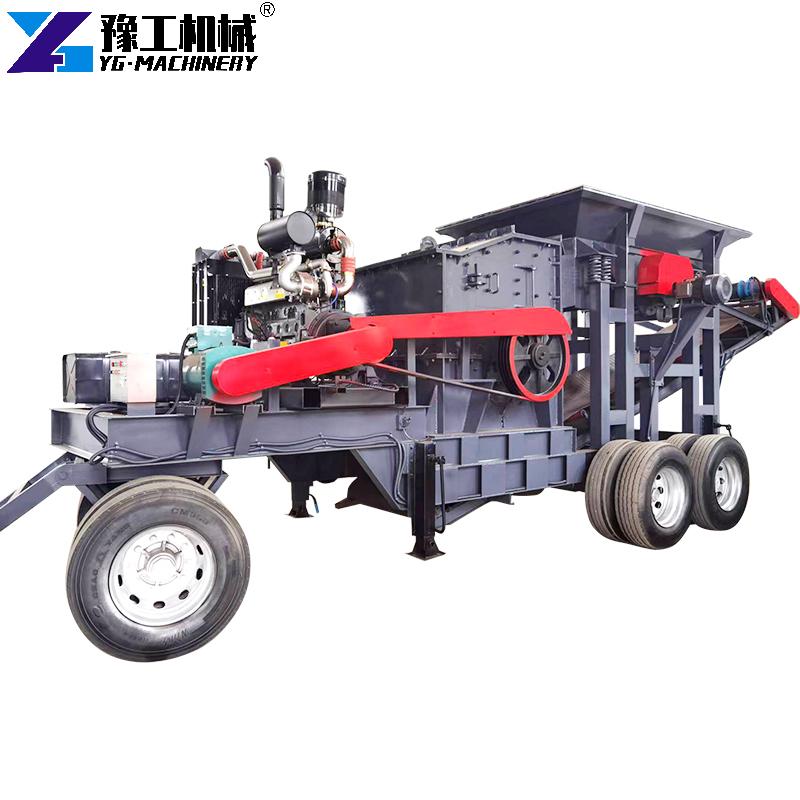

Electric mode is preferred for sites with stable power supply; diesel mode is suitable for areas without power grid access; hybrid mode combines both advantages for flexible switching.
We will recommend the optimal model based on your material type, feeding size, target discharge size and hourly capacity demands.
Contact our professional sales team to get customized quotation and configuration plan according to your project parameters.
Mobile Crushing Station Supplier—YG Machinery
YG Machinery focuses on providing global customers with reliable mobile crushing station and integrated on-site crushing solutions. We have professional technical teams to customize models, configurations and supporting services according to your material, site, capacity and application scenarios, with fast delivery, perfect after-sales support and global service network. If you have crushing project demands or want to know more details about mobile crushing station for construction waste, please contact us immediately to get exclusive solutions and efficient business support!
