Many buyers face the same question when purchasing a floor shot blaster: “Should I choose a compact machine or a wider model?”
The answer is not simply bigger is better.
From our experience serving global contractors, over 60% of selection mistakes come from incorrect project evaluation. A suitable floor shot blaster reduces steel shot waste, improves productivity, and lowers maintenance costs.
This guide compares models, applications, and real cases.
Floor Shot Blaster Parameters
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||
Which Projects Fit a 270mm Floor Shot Blaster?
The 270mm model works for:
- Small workshops
- Floor repairs
- Local coating removal
- Small concrete renovation
Advantages:
- Easy movement
- Flexible operation
- Lower investment
However, large projects require more labor time.
Selection Tip: Below 500㎡ per day, 270mm is often more economical.
Why Is the 550mm Floor Shot Blaster Popular?
The 550mm model is widely used worldwide.
Reason:
It balances productivity and flexibility.
Applications:
- Factories
- Warehouses
- Parking areas
- Bridge waterproofing
YG-550 specifications:
- Working width: 550mm
- Concrete productivity: about 600㎡/h
- Blasting wheels: 2 units
- Motor power: 2×11kW
It reduces unnecessary movement time.
Selection Tip: For mixed projects, 550mm is usually the safer choice.

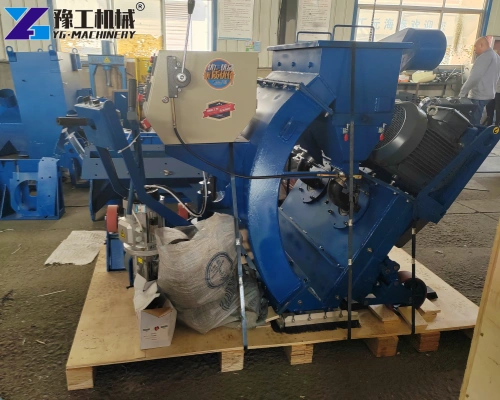

Is an 850mm Floor Shot Blaster Worth Buying?
The 850mm model targets large projects.
Applications:
- Highways
- Large concrete surfaces
- Road maintenance
Advantages:
- Larger coverage
- Faster completion
YG-850 specifications:
- Working width: 850mm
- Concrete productivity: about 600㎡/h
- Blasting wheels: 2 units
- Motor power: 2×15kW
However, it needs better transport and working space.
Selection Tip: Large machines fit long projects, not occasional jobs.
How Does a Floor Shot Blaster Compare With Other Equipment?
Buyers often compare:
- Grinding machines
- Scarifiers
- Shot blasters
Each has different purposes.
Floor Shot Blaster vs Grinding Machine
Grinding:
- Removes deeper layers
- Levels surfaces
Shot blasting:
- Removes laitance
- Creates surface profile
- Improves coating adhesion
For shot blasting concrete floor, shot blasting gives more uniform results.
Concrete Shot Blaster vs Scarifier
Scarifier:
Used for:
- Deep removal
- Damaged surfaces
Shot blaster:
Used for:
- Surface preparation
- Waterproofing preparation
Selection Tip: First decide if you need depth removal or better adhesion.
How to Select Floor Shot Blaster by Industry?
Epoxy Flooring
Recommended: 550mm
Reason: Stable surface profile.
Bridge Waterproofing
Recommended: 550mm or 850mm
Reason: Large area and uniform preparation.
Road Maintenance
Recommended: 850mm
For:
- Marking removal
- Friction improvement
Steel Surface Treatment
Shot choice matters.
Usually:
- Steel: round shot
- Concrete: cut shot
Overseas Case: Indonesian Contractor Reduced Costs
Customer: Andi, road contractor in Indonesia.
Project:
Industrial concrete floor renovation.
Problems:
- Low productivity
- Too much machine movement
- Higher labor cost
Solution:
YG-550 floor shot blasting machine
Adjustments:
- Selected 550mm width
- Used 1.5–1.8mm steel shot
- Adjusted travel speed
Results:
- Productivity increased about 40%
- Lower shot consumption
- Reduced labor needs
Concrete Shot Blaster Buying FAQ
Usually 1–2 people.
Main parts:
Directional sleeve
Blasting wheel
Protective plates
Typical life:
Directional sleeve and wheel:
About 20,000㎡.
Protective plates:
About 50,000㎡.
Final Guide: Choosing the Right Floor Shot Blaster
The best choice is not the biggest model.
It is the machine that matches:
- Working area
- Material type
- Budget
- Future projects
YG Machinery recommends checking project conditions first, then selecting the right floor shot blaster.
