In today’s market, construction speed directly affects solar project profits. A modern solar piling machine can reduce labor costs by 35% and improve installation efficiency by nearly 50%.
Most only discuss piling force. They rarely explain real jobsite problems, such as:
- How to work safely on slopes
- How to install piles in rocky ground
- Whether one machine supports drilling, ramming, and screwing
- Why some machines work well in deserts but fail on mountain sites
These points strongly affect buying decisions.
YG Machinery focuses on real construction conditions, not only machine specifications.
Solar Piling Machine Parameter
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right40° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
| Crawler photovoltaic pile driver | |||
| Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
| Track shoe width | 400mm | Impact frequency | 350-800BMP |
| motor | 4108 | Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
| Drilling depth | 0-6m | oil pump | 40/40/32 |
| Drilling diameter | 80-600mm | Driving speed | |

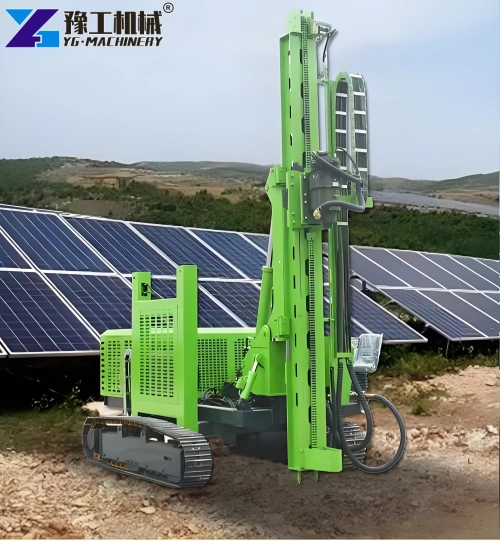

What Is a Solar Piling Machine?
A solar piling machine is a hydraulic piling system used for photovoltaic foundation work.
It is widely used for:
- Solar steel pile installation
- Ground screw installation
- Mountain solar projects
- Solar mounting foundations
- Light steel structure foundations
Most photovoltaic pile driver systems support three working methods.
Drilling System
Drilling works best in rocky ground and hard soil.
The hydraulic auger drilling system supports up to 600 mm drilling diameter and 0-6 m drilling depth.
For harder rock, contractors use DTH drilling systems with a 20 m³/min air compressor at 20 bar pressure.
Short answer? Rocky ground needs drilling first.
Ramming System
Ramming works best for sand, soft soil, and flat solar farms.
The hydraulic hammer uses vibration and impact force to drive steel piles quickly into the ground.
Fast installation. Lower cost.
Screwing System
Screwing is ideal for mountain and hillside projects.
The machine rotates the ground screw slowly into the soil.
This method creates stronger pull-out resistance and improves slope stability.
Tip: Mountain solar projects usually prefer screwing instead of pure vibration piling.
Why Modern Solar Piling Machine Systems Work Faster
Many contractors waste hours every day repositioning machines. That becomes hidden cost.
YG Machinery solar pile driver systems use a 360° rotating structure. Operators do not need to move the crawler repeatedly.
The boom also extends 40 cm forward. This improves positioning in narrow areas.
For mountain projects, the high-leg and low-leg structure improves slope stability and reduces slipping risks.
The design sounds simple. But it saves real time onsite.
Solar Piling Machine for Different Ground Conditions
Different soil requires different construction methods. Many contractors choose the wrong system first. Then costs increase later.
Solar Piling Machine for Normal Soil
For sand, clay, and flat ground, hydraulic ramming works best.
No drilling is needed. The machine directly vibrates steel piles into the ground.
Solar Piling Machine for Rocky Ground
Rock layers usually require drilling systems. This is common in Middle East solar projects.
Our DTH drilling rig solves the problem of piles failing to enter hard rock layers. Many competitors do not explain this clearly.
Solar Piling Machine for Mountain Projects
Mountain construction has another problem. Slope movement.
Pure vibration can loosen the soil. Screwing systems provide better stability. The screw pile grips the soil like a large bolt.
Pull-out resistance becomes stronger. Especially in South American projects.
Why Solar Piling Machine and Guardrail Pile Driver Use Similar Technology
Many contractors notice that solar piling machine and guardrail pile driver systems look very similar.
The reason is simple.
Both belong to light-duty vibratory piling equipment.
They share:
- Compact crawler chassis
- Hydraulic power systems
- Vibratory hammer structures
- Fast relocation capability
- Shallow steel pile installation
That means one machine can support:
- Solar farms
- Highway guardrail installation
- Fence posts
- Sound barriers
- Temporary steel piling
Rental companies value this flexibility.
Real Customer Case from Chile
Last year, a contractor from northern Chile contacted us. The customer worked on a mountain solar project with rocky soil and gravel layers.
The previous vibration machine caused:
- Pile deviation
- Loose slope soil
- Insufficient pile depth
We suggested a solar piling machine with screwing capability. The customer used drilling for rocky sections and screwing for mountain areas.
Results after four months:
- Installation efficiency improved by 42%
- Pile deviation reduced by 60%
- Labor cost reduced by 30%
- Mountain stability improved significantly
Later, the customer ordered another photovoltaic pile driver for a new project.
Applications of Solar Piling Machine
Modern solar piling machine systems are no longer limited to photovoltaic projects.
Common Applications
- Solar farm foundations
- Mountain photovoltaic projects
- Wind power foundations
- Guardrail post installation
- Fence projects
- Municipal foundations
- Temporary steel piling
- Sound barrier systems
- Farm fencing
- Energy storage station foundations
Tip: Many South American contractors use one machine for both road and solar jobs.
Frequently Asked Questions About Solar Piling Machine
Mountainous areas have hard soil, gravel and inclined terrain. Rotary screwing is like screwing screws, which can avoid or squeeze small stones, ensure verticality, not vibrate or loosen the slope soil, and has strong uplift resistance.
The pile driving depth is mostly 1-3 meters, which can be adjusted according to the soil quality and the requirements of photovoltaic supports.
Yes, it can. The vibratory sinking mode can be used. The high-frequency vibration makes the soil around the pile liquefy, reducing resistance, and the pile can be sunk smoothly.
Why Contractors Choose YG Machinery
YG Machinery focuses on:
- Solar piling systems
- Mountain construction equipment
- Rocky ground drilling solutions
- Middle East and South America projects
We understand real construction problems. And we know downtime costs money.
That is why we combine drilling, ramming, and screwing into one platform. Simple structure. Faster work. Lower maintenance cost.
