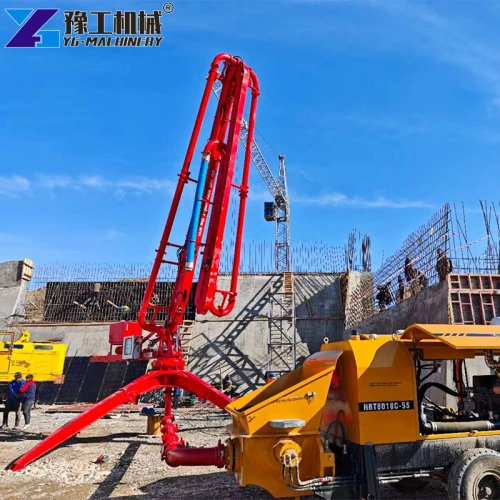

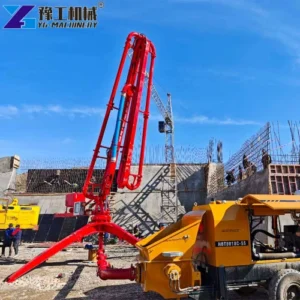

A boom placer machine is the core end-distribution device for modern concrete construction. It receives concrete from a pump truck and delivers it precisely using a rotating and telescopic boom. Compared to manual piping, it increases efficiency by 4-6 times. An 18m hydraulic boom can replace 8-10 workers, with actual construction efficiency of 30-40m³/h.
Tip: Choosing the correct boom radius ensures complete coverage of your construction site.
Boom Placer Machine Parameter
| Model | YG12-2 | YG14-3 | YG15 | YG18 | YG21-3 | |
| Permance | Horizontal reach（m） | 11.6m | 13.5m | 15m | 17.1m | 20.6m |
| Rotation（°） | 360° | 360° | 360° | 360° | 360° | |
| Elevation angle(°) | 0～87° | 0～80° | 0～90° | 0～90° | 0～80° | |
| Slewing brake | Normally closed | Normally closed | Normally closed | Normally closed | Normally closed | |
| Working environment temperature | -5℃～40℃ | -5℃～40℃ | -5℃～40℃ | -5℃～40℃ | -5℃～40℃ | |
| Control System | Power | 380V/50HZ | 380V | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Output（kW） | 4 | 4 | 4 | 4.4 | 5.5 | |
| Ptotection grade | IP54 | IP54 | IP54 | IP54 | ||
| Insulation clas | F | F | F | F | ||
| System Pressure(MPa) | 20 | 20 | 20 | 20 | 30 | |
| Control mode | Panel/Radio remote | Switching value remote control | Cable/Radio remote | Wired/Wireless | Switching value remote control | |
| Boom | Boom open way | Two R | Three R | Three R | Three R | Three R |
| Inner diameter of delivery pipe（mm） | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 | |
| End rubber hose（m） | 3 | 3 | 3 | 3 | 3 | |
| Corner（°） | 87/195 | 80/180/195 | 90/180/180 | 84/180/180 | 80/180/195 |
Boom Placer Machine Key Features and Technical Advantages
- Precise Distribution and Wide Coverage
- 360° rotating boom covers floors, foundations, and columns
- Supports point pouring and continuous spreading, eliminating dead zones
- Versatile Power Systems
- Electric: smooth and quiet operation
- Hydraulic: high load capacity, flexible motion, mainstream choice
- Safety Protection Systems
- Equipped with rotation limit, torque protection, and wind safeguards
- Wired/wireless remote control prevents misuse
- Durable Structural Design
- Truss-type boom, lightweight yet high-load capacity
- Direct-wear-resistant pipeline ensures stable pump pressure
Tip: Regularly check hydraulic oil levels to ensure smooth operation.
Concrete Placing Boom: Wide Range of Applications
Boom placer machines are suitable for various construction projects:
- Residential Buildings: floors, columns, and foundations
- High-Rise Construction: climbing type follows building height
- Large Infrastructure: walking type moves across airports, railway stations, and factories
- Precast Construction: ensures precise concrete placement
Success Case
A construction contractor in Eastern Europe used an 18m hydraulic boom placer machine for a 25-story building. Working with a concrete pump, they achieved continuous pouring, eliminated column dead zones, and improved efficiency by 50%, reducing labor costs by 40%. Modular design allowed key parts to be replaced within 48 hours.
Tip: Matching boom radius with concrete pumps significantly boosts efficiency and safety.
Boom Placer Machine FAQ
Standard 125mm pipelines fit 99% of concrete pumps worldwide.
120-220mm slump concrete or pumped concrete; not suitable for dry mix or large-aggregate concrete.
Standard stock ships in 7 days; custom units 30-45 days. Voltage, frequency, and boom radius can be tailored.
Why Choose YG Machinery’s Boom Placer Machine?
- Cost-Effective: The core components are the same as those of top-tier brands, but the price is 30-40% cheaper.
- Globally Applicable: CE, ISO9001 certified, usable in 90% of countries
- Fast Support: 24-hour English service.
- Modular Design: Adaptable to multiple construction scenarios, easy maintenance
Tip: Selecting the right boom placer machine for your project reduces labor costs and construction risk.
