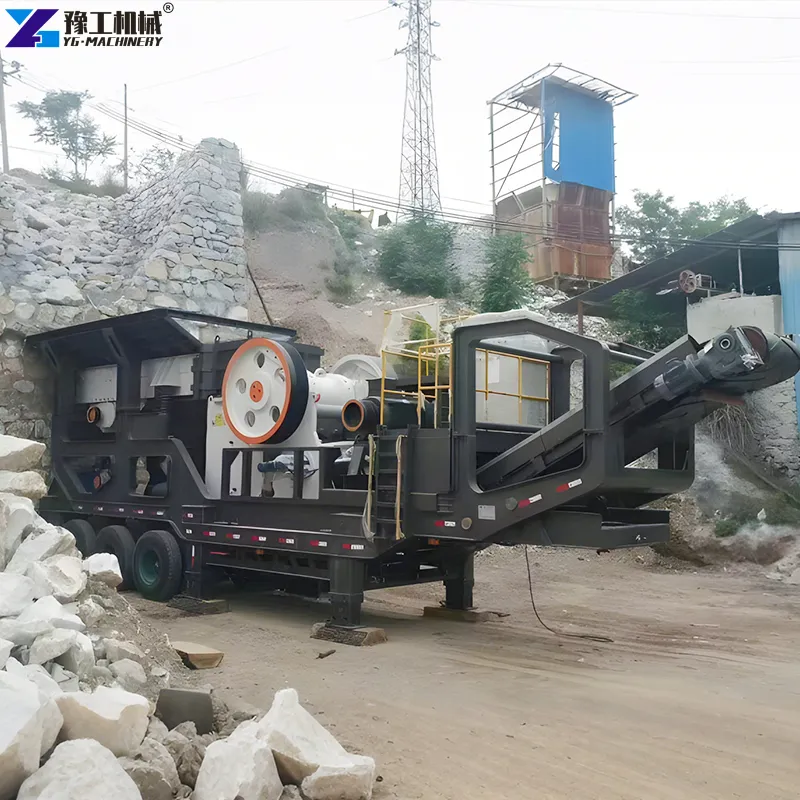

Mobile Crushing Machine

In today’s market, the mobile crushing machine is becoming the top choice for construction, mining, and recycling industries. Its flexibility and high efficiency allow users to deploy it quickly across various sites. Compared with traditional stationary crushers, mobile crushing machines save on transport and setup time, boosting overall productivity.

Get a Free Quote

Mobile Crushing Machine Parameter

Model	Feeding Size	Discharging Opening Size	Capacity	Power	Weight	Overall Dimension
	(mm)	(mm)	(t/h)	(kw)	(t)	(mm)
YG250×400	≤210	20-60	5-21	15	2.8	1300*1090*1270
YG400×600	≤340	40-100	16-64	30	7	1730*1730*1630
YG500×750	≤425	50-100	40-110	55	12	1980*2080*1870
YG600×900	≤500	65-160	50-160	55	17	2190*2206*2300
YG750×1060	≤630	80-140	110-320	110	29	2660*2430*2800
YG900×1200	≤750	95-165	220-380	132	52	3380*2870*3330
YG1000x1200	≤850	195-265	315-500	160	55	3480*2876*3330
YG1200×1500	≤1020	150-350	400-800	160-220	100.9	4200*3300*3500
YG1500×1800	≤1200	220-350	500-1000	280-355	139	5160*3660*4248
YGX150×750	≤120	18-48	8-25	15	3.8	1200*1530*1060
YGX250×750	≤210	25-60	13-35	22	5.5	1380*1750*1540
YGX250×1000	≤210	25-60	16-52	30	7	1560*1950*1390
YGX250×1200	≤210	25-60	20-60	37	9.7	2140*1660*1500
YGX300×1300	≤250	20-90	16-105	55	15.6	2720*1950*1600
YGX500×1500	≤3250	25-120	50-160	90	20	2360*2660*2105

Model	800×800	800×1000	1000×1200	1200×1200	1200×1500	1400×1600
Motor Power	90kw×4G	110kw×4G	132kw×4G	160kw×4G	185kw×4G	250kw×4G
Diesel Power	195HP	195HP	260HP	330HP	330HP	400HP
Hopper	3500*1800*8mm	3600*2200*8mm	3600*2200*8mm	3800*2200*8mm	3800*2200*8mm	4000*2400*10mm
Hammerhead Weight	15kg	15kg	20kg	36kg	36kg	55kg
Total Weight	10t	12.5t	14t	19t	21t	26t
Belt	7×0.8m	8×0.8m	8×1m	8×1m	8×1m	9×1m
Belt Conveyor Power	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	7.5kw
Tyre Model×Number	1100×8pcs	1100×8pcs	1100×8pcs	1000×12pcs	1100×12pcs	1100×12pcs
Sand Capacity	30t	45t	55t	65t	80t	100t
Stone Capacity	50t	70t	80t	90t	120t	180t
Overall Size	10*2.8*3.5m	11*2.8*3.5m	11.5*2.8*3.5m	12*3*3.6m	12*3*3.6m	13*3.2*3.7m

Get a Free Quote

Key Advantages of Mobile Crushing Machines

• Quick Deployment: No complex infrastructure needed; ready to use on site.
• Cost Savings: Reduced transport and labor costs, and lower energy consumption.
• High Adaptability: Handles various materials, including concrete, limestone, ores, and construction waste.

Tip: When selecting a mobile crushing machine, check the processing capacity (t/h) and maximum feed size. These are crucial for maintaining efficiency.

Get a Free Quote

Mobile Crushing Machine Expanded Application Areas

1. Construction Waste Recycling: Use the mobile crushing machine to crush waste concrete for reuse, cutting disposal costs.
2. Mining Operations: Lightweight mobile crushers can be deployed quickly in mining areas for efficient material crushing.
3. Road Construction: On-site material processing is possible when mobile concrete crushers work alongside mobile crushing machines.
4. Sand and Gravel Production: Small mobile crushers are ideal for direct use at quarries, offering flexible output adjustments.

Tip: Choose the right model based on material hardness to improve production efficiency and reduce equipment wear.

Get a Free Quote

Success Case / Solution

Client Case: A customer from Brazil needed to process limestone in remote mining areas. Using our mobile crushing machine, they crushed and sorted ore directly on-site. The result: daily output increased by 30%, transport and labor costs decreased by 25%. The client appreciated the machine’s mobility and easy maintenance, making it convenient to move between different mining sites.

Tip: Mobile crushing machines are perfect for frequently changing job sites, ensuring continuous and flexible production.
