Data from mining exploration projects shows growing RC drilling adoption worldwide. The reason is simple. Speed. A modern RC drilling machine can often deliver sampling efficiency two to three times higher than a conventional core drill.
Compressed air travels down through the outer tube.
Rock chips return through the center tube.
The drilling process stays continuous.
No frequent rod pulling. Higher productivity follows naturally.
RC Drilling Machine Parameter
| Technical Parameters | unit | YG-400 | YG-500 | YG-600 | YG-800 | YG-1200 |
| Maximum drilling depth | M | 300 | 400 | 500 | 600 | 1000 |
| Drilling diameter | mm | 105-305 | 105-400 | 105-450 | 105-550 | 105-800 |
| Recommended working air pressure | Mpa | 1.2-3.5 | 1.6-6 | 1.6-6 | 1.6-8 | 1.6-8 |
| Recommended gas consumption | m³/min | 16-55 | 16-55 | 16-75 | 16-96 | 16-96 |
| Drill pipe length | m | 3 | 3 | 3 | 6 | 6 |
| Recommended drill pipe diameter | mm | 89/102 | 102/114 | 102/114 | 114/127 | 127/146 |
| Recommended diameter for air reverse circulation double-walled drill pipe | mm | 89/102 | 102/114 | 102/114 | 114/127 | 127/146 |
| Axial pressure | T | 6 | 7 | 7 | 11 | 13 |
| Lifting force | T | 22 | 25 | 29 | 47 | 57 |
| Rapid ascent speed | m/min | 20 | 23 | 29 | 29 | 30 |
| Fast forward speed | m/min | 32 | 33 | 33 | 42 | 44 |
| Maximum rotational torque | Nm | 8000/4000 | 10000/5000 | 12000/6000 | 18000/9000 | 24000/12000 |
| Maximum rotational speed | r/min | 75/150 | 75/150 | 75/150 | 70/140 | 86/172 |
| Small auxiliary hoisting force | T | 1.5 | 1.5 | 2.5 | 2.5 | 2.5 |
| Drilling efficiency | m/h | 10-35 | 10-35 | 10-35 | 10-35 | 10-35 |
| Walking speed | Km/h | 2.5 | 2.5 | 3.5 | 5 | 6.4 |
| External dimensions | m | 6.2*1.85*2.8 | 7*2.1*2.8 | 7*2.1*2.8 | 10.5.*2.25*3.3 | 11.5*2.25*3.4 |
| Adaptation conditions | Loose layers and bedrock | |||||
| Drilling method | Top-drive hydraulic rotation and propulsion, down-the-hole hammer drilling or mud drilling. | |||||
| Optional accessories | Mud pumps, centrifugal pumps, generators, foam pumps | |||||
How Does an RC Drilling Machine Improve Sample Quality?
Many exploration failures begin with poor samples. Not poor drilling. Contaminated samples can lead to inaccurate resource estimates.
This is where RC drilling performs well. Rock samples travel through a sealed internal pathway. Outside contamination stays minimal.
YG Machinery’s reverse circulation drilling equipment includes a cyclone separator and dedicated sample collection system. Samples remain cleaner. Laboratory results become more reliable.
This matters greatly in gold, copper, and lithium projects.
How Does an RC Drilling Machine Handle Harsh Conditions?
This question comes up frequently from African mining contractors. The reality is tough.
Dust. Heat. Broken rock. Long operating hours.
These conditions are normal.
YG Machinery’s RC drilling machine uses a patented air pre-filter system. The system removes more than 90% of airborne dust. It also discharges dust automatically. Cleaning requirements stay low. Engine wear decreases significantly. Equipment life becomes longer.
Which RC Drilling Machine Features Matter Most?
Hydraulic System
The hydraulic system affects daily productivity. YG Machinery uses full hydraulic control. Mast lifting, feeding, and travel functions operate smoothly. Operators work more efficiently.
Drill Rod Protection
Many buyers overlook drill rod costs. However, they represent a major operating expense. YG uses a compensation sliding plate system. Drill rod threads stay protected. Service life improves noticeably.
Hole Accuracy System
Hole deviation affects geological data quality. YG Machinery equips each rig with a centering device and level indicator. Hole positioning becomes more precise.
💡 Tip: Experienced geologists often inspect hole alignment before anything else.
Where Is the RC Drilling Machine Used?
Gold Exploration
This remains the largest application area. Fast sampling helps shorten exploration timelines.
Copper and Lithium Projects
Demand for battery minerals continues to grow. Efficient sampling has become increasingly important.
Geological Surveys
Government geological agencies need large volumes of sample data. RC drilling supports this work effectively.
Deep Hole Engineering

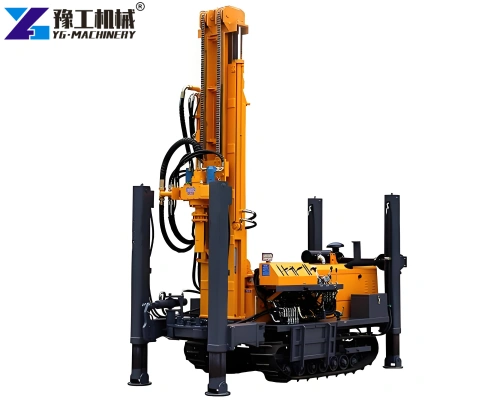

The technology also serves selected water wells and foundation projects.

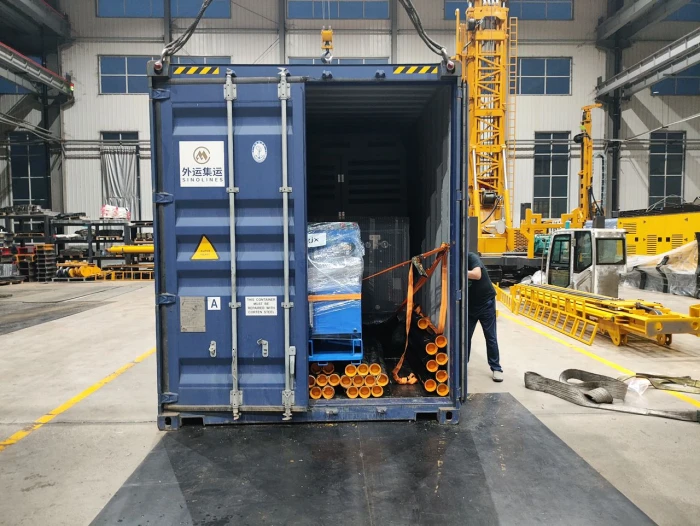

Success Story: Guinea Gold Exploration Project
In 2025, we worked with a customer from Guinea. Let’s call him David.
David managed a gold exploration program in West Africa. His project faced two major issues. Sample contamination. Slow drilling progress. The original drilling system averaged around 70 meters daily.
Later, the team purchased a YG Machinery reverse circulation drilling rig and matched it with a high-pressure compressor package.
Three weeks later, daily drilling output reached 145 meters. Productivity increased by more than 100%. More importantly, laboratory reports showed better sample consistency. David later told us: “Before, we worried about sample quality. Now we worry about keeping up with drilling speed.”
RC Drilling Machine Frequently Asked Questions
Yes. Compressed air is essential for RC drilling operations.
Focus on:
Drilling depth
Compressor compatibility
Hydraulic stability
Dust collection performance
After-sales support
Yes. RC drilling performs very well in hard rock formations.
No. Routine checks of hydraulic and air systems are usually sufficient.
Why Are More Buyers Choosing YG Machinery?
In today’s market, buyers focus on long-term returns. Not only the purchase price.
YG Machinery’s RC drilling machine operates successfully in Guinea, Ghana, Zimbabwe, South Africa, Chile, Peru, the UAE, and Kazakhstan.
Our goal is straightforward.
Help customers drill faster, collect cleaner samples, and reduce operating costs.
If you are searching for a reliable RC drill rig for sale, contact YG Machinery for a tailored drilling solution.
