In today’s market, buyers searching for a water well drilling rig machine care about more than price. Most users focus on drilling depth, rock adaptability, fuel costs, drilling speed, and after-sales support.
At YG Machinery, we exported water well rigs to the United States, Canada, Mexico, Dominican Republic, and South Africa. Real buyers usually ask three questions first: Can it drill hard rock? How many meters can it drill daily? Should I use an air compressor or a mud pump?
Water Well Drilling Rig Machine Parameter
| Model | YG-180 | YG–200 | YG–300 | YG–300A | YG–400 | YG–600 |
| Drilling hole diameter | 140-254mm | 140-305mm | 140-325mm | 140-325mm | 140-350mm | 140-350mm |
| Drilling depth | 180m | 200m | 300m | 300m | 400m | 600m |
| One-time advance length | 3.4m | 3.4m | 6.6m | 3.4m | 6.6m | 6.6m |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h |
| Climbing angles (Max.) | 30 | 30 | 30 | 30 | 30 | 30 |
| Equipped capacitor | 55kw | 65-70kw | 84kw | 75.8kw | 92kw | 115kw |
| Using air pressure | 1.7-2.5mpa | 1.7-3.0mpa | 1.7-3.3mpa | 1.7-3.0mpa | 1.7-3.5mpa | 1.7-3.5mpa |
| Air consumption | 17-31m³/min | 17-30m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min |
| Drill pipe length | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m,6.0m | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m,6.0m | 1.5m, 2.0m, 3.0m,6.0m |
| Drill pipe diameter | 76mm, 89mm | 76mm, 89mm | 89mm, 102mm | 76mm, 89mm, 102mm | 89mm,102mm,108mm | 102mm,108mm,114mm |
| Rig lifting force | 15t | 12t | 20t | 16t | 22t | 28t |
| Swing speed | 45-65rpm | 45-70rpm | 45–115rpm | 40–70rpm | 45-115rpm | 45–115rpm |
| Swing torque | 3200-4600(N.m) | 3500-4800(N.m) | 6200-8500(N.m) | 5700-7500(N.m) | 6500-9000(N.m) | 8500-11000(N.m) |
| Dimension | 3800*1500*2200mm | 4000*1750*2450mm | 5900*2000*2850mm | 4100*1950*2600mm | 5900*2100*2850mm | 6000*2200*2850mm |
| Weight | 4500kg | 5800kg | 9000kg | 7000kg | 10000kg | 12000kg |
What Makes a Water Well Drilling Rig Machine Better for Hard Rock?
The answer is simple. High torque improves rock drilling efficiency.
YG Machinery rigs use large hydraulic motors and reinforced rotary gearboxes. They work well in mountain areas, basalt layers, gravel formations, and fractured rock conditions. Models below 300 meters fit farm irrigation and rural water projects. Models above 300 meters include reinforced outriggers and onboard power systems for deeper drilling jobs.
For any deep well drilling machine, the rotary torque and air pressure range matter most. In Mexico and South Africa, high-pressure air removes rock chips faster and keeps drilling stable.
Tip: For gravel layers, an air compressor setup saves serious drilling time.
What Types of Water Well Drilling Rig Machine Are Available?

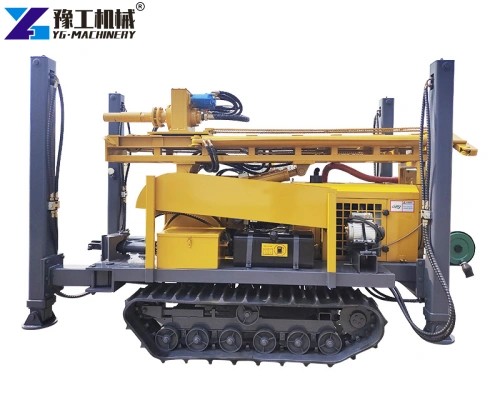

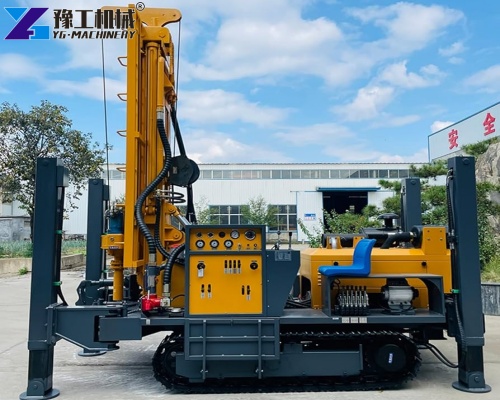

Crawler Water Well Drilling Rig
Crawler rigs fit mountain roads, muddy ground, and rough terrain. The tracks improve traction.
Many North American contractors prefer crawler rigs for deep rock water well drilling because rural roads are uneven.

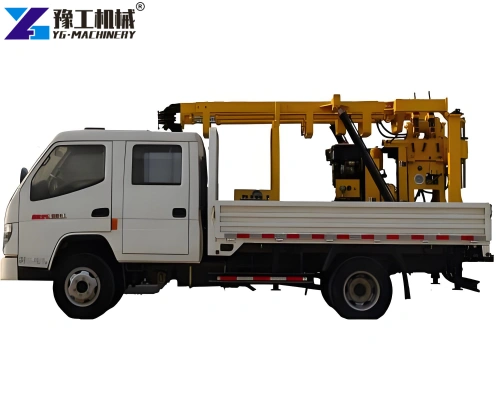

Truck-Mounted Water Well Rig
Truck-mounted rigs work well for mobile drilling projects. Transportation becomes faster.
In the United States and Canada, large farms often choose truck-mounted rigs because well locations stay far apart.

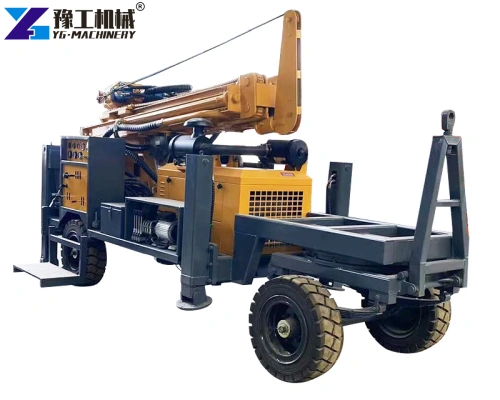

Wheel-Type Water Well Rig
Wheel-type rigs fit flat land and short-distance movement. Maintenance costs stay lower.
For buyers searching water drilling machine for sale, long-term repair cost often matters more than purchase price.
Where Is a Water Well Drilling Rig Machine Used?
Agriculture and infrastructure projects currently drive most demand.
Agricultural Irrigation
Farms need reliable underground water. In Mexico and Guatemala, many irrigation wells reach around 200 meters.
Construction Projects
Construction sites need temporary water supply systems. Fast movement becomes important.
Mining Industry
Mining projects often require deeper wells. Some drilling depths exceed 400 meters.
Rural Water Supply
African projects widely use drilling rigs for village water systems. South African buyers care strongly about spare parts and machine stability.
Geothermal and Survey Projects
Some contractors use underground water detectors before drilling. This improves well success rates.
💡 Tip: If the drilling area lacks stable electricity, choose a rig with a generator system.
Case Study: A South African Client Completed a 400m Well Faster
In 2025, a South African contractor named David handled a mountain water supply project. The rock layers were extremely hard. Transport conditions were rough too. His older machine frequently stuck during drilling, and daily progress stayed below 60 meters.
Later, he purchased a YG-400 water well drilling rig machine with a high-pressure air compressor system. The rig used a 92kW power unit and delivered up to 9000N · m rotary torque.
After installation, the average drilling speed reached 35 meters per hour. The entire 400-meter well was finished within six days.
Fuel costs also dropped.
David reported that the dual air filter system stayed reliable in dusty conditions. Maintenance intervals became longer. He has already planned a second equipment purchase.
How to Choose the Right Water Well Drilling Rig Machine?
For Soil and Sand Layers
A mud pump system usually works well. Operating costs stay lower.
For Rock Formations
An air compressor setup performs better. Drilling becomes much faster.
For Wells Below 300 Meters
Medium-sized rigs often meet project needs while lowering transport costs.
For Wells Above 300 Meters
Choose reinforced outriggers and higher torque systems for better stability.
For users searching water drilling machine for sale, long-term operating cost matters more than initial investment. A stable hydraulic system reduces downtime.
What Supporting Equipment Is Needed?
A complete drilling project needs more than a rig.
Water Pumps
After drilling, the pumps test the water output and water quality.
Well Cleaning Equipment
Cleaning removes mud and sand from the well and improves water flow.
Underground Water Detectors
These tools locate water-bearing layers before drilling starts.
Supporting equipment reduces wasted drilling time and labor expenses.
Water Well Drilling Rig Machine FAQ
With an air compressor, drilling speed normally reaches 30-40 meters per hour. Ground conditions affect results.
In most situations, yes. Especially for hard rock layers.
Replace hydraulic oil regularly, clean dual air filters, and inspect drill pipes for wear.
Why Are More Buyers Choosing YG Machinery?
The reason is practical. Stable equipment improves project profits.
YG Machinery supplies water well drilling rig machine systems together with air compressors, water pumps, and technical support. Our rigs fit agriculture, mining, mountain water supply, and infrastructure drilling projects.
Many buyers first order one unit for testing. Later, they purchase more machines.
Because the rigs stay reliable. Drilling becomes faster. Maintenance costs stay lower.
If you need a dependable deep well drilling machine for difficult rock conditions, contact YG Machinery for a drilling solution today.
