Concrete surface preparation directly affects coating adhesion, waterproofing performance, and pavement safety. Industry studies show that properly prepared concrete can improve coating adhesion by over 30%. This is why a concrete blasting machine has become one of the most widely used solutions for road, bridge, airport, and industrial flooring projects.
Concrete Blasting Machine Parameters
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||
What Is a Concrete Blasting Machine?
A concrete blasting machine uses a high-speed blasting wheel to throw steel shot onto a concrete surface at a controlled angle. The impact removes laitance, coatings, rubber deposits, dirt, and contaminants.
At the same time, a vacuum recovery system collects steel shot and debris. The shot is recycled automatically.
The result is simple:
- Cleaner concrete
- Higher surface roughness
- Better coating adhesion
- Dust-controlled operation
Tip: For bridge waterproofing projects, surface roughness is often more important than cleaning speed.
How Does a Concrete Blasting Machine Improve Surface Quality?
Concrete blasting creates a uniform surface profile. This helps coatings and waterproof membranes bond better.
Key performance benefits include:
- Remove concrete laitance
- Remove old paint and traffic markings
- Increase skid resistance
- Improve friction coefficient
- Prepare surfaces for epoxy flooring
- Meet bridge deck waterproofing requirements
Where Is a Concrete Shot Blasting Machine Used?
Road and Highway Maintenance
Municipal contractors use a concrete shot blasting machine to remove old road markings and coatings. The process increases pavement friction and improves vehicle safety.
Bridge Deck Waterproofing
Bridge waterproofing failures often start with poor surface preparation.
Shot blasting removes weak surface layers and creates an ideal profile for waterproof membranes.
Airport Runway Cleaning
Airport operators use a shot blasting machine for concrete to remove rubber buildup from aircraft tires.
This restores runway texture and improves braking performance.
Industrial Floors
Factories use shot blasting before applying epoxy coatings.
A properly prepared floor can extend coating service life significantly.
Nuclear and Energy Projects
Shot blasting is also used for decontamination and surface cleaning in specialized facilities.

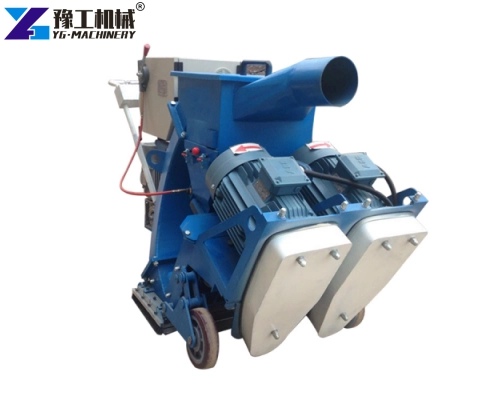

YG-550 Road Shot Blasting Machine for Sale
The most popular model among contractors.
Key data:
- Cleaning width: 550 mm
- Concrete productivity: up to 600 m²/h
- Dual blasting units
- Total power: 30 kW
- Dust collector airflow: 1250 m³/h
- Machine weight: 595 kg
This road shot blasting machine for sale balances productivity and mobility.
Real Customer Case: Bridge Project in Australia
In 2024, a contractor named David from Australia needed surface preparation before applying a bridge waterproofing membrane.
The existing method used grinding equipment. Productivity was only 180 m² per day.
After switching to a YG-550 concrete blasting machine, the team achieved nearly 500 m² per day.
Results included:
- 60% shorter preparation time
- More consistent surface profile
- Reduced labor costs
- Cleaner worksite due to dust collection
The waterproofing contractor completed the project ahead of schedule.
Frequently Asked Questions
No. When properly adjusted, it removes weak surface layers without damaging structural concrete.
Grinding cuts the surface. Shot blasting impacts and cleans the surface while creating texture.
Yes. Most steel shot is automatically recovered and recycled.
No. YG machines use integrated dust collectors with automatic reverse-pulse cleaning.
Concrete, bridge decks, asphalt pavement, steel plates, airport runways, and industrial floors.
Why Contractors Choose YG Machinery
In today’s market, buyers want more than machine specifications. They want productivity, reliability, and low operating costs.
YG Machinery combines:
- High cleaning efficiency
- Automatic dust collection
- Recyclable steel shot system
- Multiple cleaning widths
- Proven field performance
For contractors looking for a dependable concrete blasting machine, the YG-270, YG-550, and YG-850 provide practical solutions for road, bridge, airport, and flooring projects worldwide.
