Glass vacuum lifting equipment reduces labor risk by over 60% in large panel installation projects. That matters because modern buildings now use bigger glass panels and heavier decorative materials. In today’s market, contractors need faster installation and safer handling. Manual lifting often causes broken glass, worker injuries, and alignment mistakes. We have seen this problem many times in Europe and North America projects.
At YG Machinery, we worked with installers handling curtain wall glass, marble slabs, and oversized tiles. Most crews wanted one thing. Better control. That is where glass vacuum lifting equipment changes the reality.
Glass Vacuum Lifting Equipment Parameter
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||

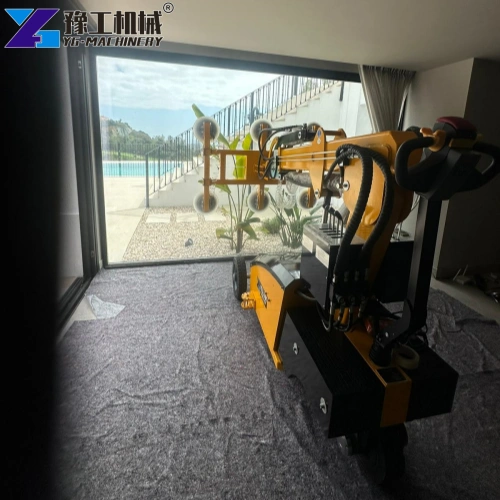

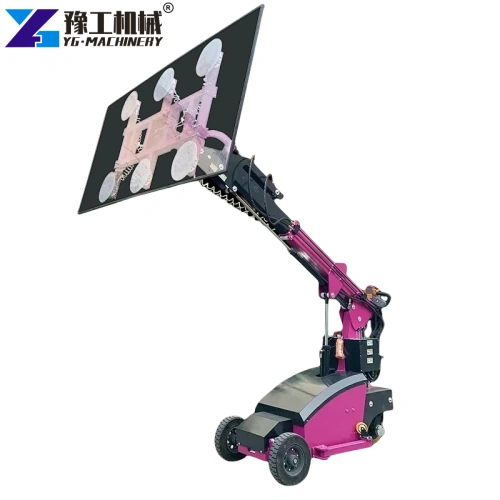

What Is Glass Vacuum Lifting Equipment?
Glass vacuum lifting equipment uses suction cups and electric lifting systems to move heavy panels safely. It handles glass, marble, granite, ceramic tiles, acrylic sheets, and aluminum panels.
Most systems include:
- Vacuum suction pads
- Electric lifting arm
- Rotation system
- Hydraulic control
- Safety pressure monitoring
Our machines support loads from 300kg to 800kg. The highest lifting height reaches 5 meters.
✏️ Tip: Many buyers only check lifting weight. They forget door width. Our 600 model is only 860mm wide.
Why Contractors Now Prefer Glass Vacuum Lifting Equipment
Better Safety During Installation
Glass panels are expensive and fragile. One installation error can cost thousands. Glass vacuum lifting equipment keeps suction pressure stable during movement. Operators can rotate glass 360 degrees and stop at any angle. This helps workers align panels with millimeter-level accuracy. That matters a lot during skylight and curtain wall installation.
Faster Work on Site
A traditional team may need six workers to move large glass panels. A glass lifter machine often reduces that to two operators. As a result, labor costs drop. Installation speed increases. Many European contractors now request wireless remote control systems. Operators can adjust rotation and tilting without touching the glass.
Easier Access in Buildings
One common customer question is simple. “Can the machine fit through doors or elevators?” Yes. Our compact designs enter standard commercial doors easily. The 800kg model width is 1080mm. The 600kg model width is only 860mm.
Glass Vacuum Lifting Equipment for Different Industries
Curtain Wall Installation
Curtain wall projects often use oversized tempered glass.
Glass vacuum lifting equipment helps installers position panels safely at high levels. For projects above 5 meters, contractors often combine the machine with a spider crane.
Marble and Stone Installation
Stone slabs are heavier than standard glass. Our customers in Italy and Canada often use the same machine for marble and granite installation. The vacuum pads handle polished surfaces very well.
Tile and Aluminum Panel Handling
Large-format tiles are now common in hotels and luxury apartments. Installers use glass lifting equipment for sale to reduce tile cracking during lifting. Aluminum composite panels also require careful positioning during facade installation.
✏️ Tip: Smooth surfaces always create better suction performance.
How a Glass Lifting Robot Improves Precision
A glass lifting robot gives operators better angle control during installation. This becomes important when working on sloped curtain walls or skylight glass. Our optional electric tilting system allows vertical-to-horizontal flipping with one-button control. Operators can stop at any angle for fine adjustment. Small movement. Big difference.
Many customers also add:
- Electric rotation
- Side tilting
- Wireless remote control
- Extended suction frame
These options reduce worker fatigue during long installation jobs.
Real Customer Case from Canada
Last year, a contractor from Toronto contacted us for a high-rise glass project.
The customer handled laminated curtain wall glass panels weighing around 650kg. Their old forklift solution caused alignment problems and slow installation speed.
We recommended our 800kg glass vacuum lifting equipment with electric rotation and wireless remote control.
After two months, the customer reported:
- Installation efficiency improved by 35%
- Glass damage rate dropped sharply
- Two workers replaced a six-person lifting team
- Installation accuracy improved during windy conditions
The project later expanded into marble facade installation. That was a good sign.
Glass vacuum lifting equipment is now a practical tool for modern installation companies. It improves safety, lifting precision, and labor efficiency.
For contractors handling curtain wall glass, marble slabs, tiles, or aluminum panels, the right equipment can save time every day.
YG Machinery provides lifting capacities from 300kg to 800kg with lifting heights up to 5 meters. Optional electric rotation and remote control systems make installation easier in complex job sites.
If you need reliable glass handling equipment for your next project, our team can help you choose the right model.
