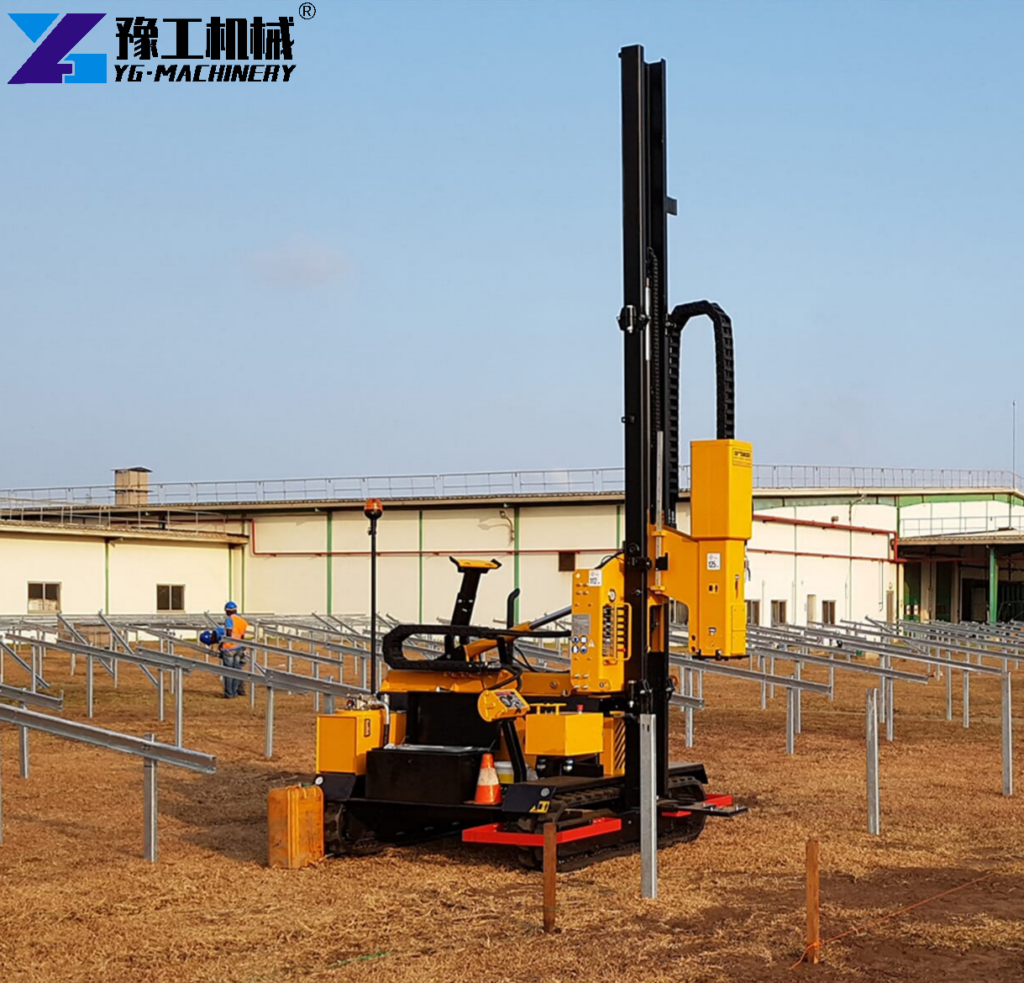

Photovoltaic pile driver is a specialized construction machine designed exclusively for solar photovoltaic power station foundation installation. It is widely used for driving ground screws, steel piles and photovoltaic bracket foundations, ensuring stable and efficient construction of large‑scale solar farms. Offered in drilling (spiral & DTH), hydraulic ramming and integrated 2‑in‑1 versions, this equipment features strong geological adaptability and high operating efficiency to support global solar project construction. This article presents factual product features, working types, application scenarios and real‑world performance of photovoltaic pile drivers for global buyers.
Photovoltaic Pile Driver Parameters:
| Parameter | Specification | Parameter | Specification |
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right 150 ° |
| Reducer torque | 13000n.m | Slide swing angle | left and right 40 ° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 |
Two Core Working Modes
The working mode is the most important factor when choosing a photovoltaic pile driver, as it directly affects construction efficiency and suitable ground conditions. There are two main types in the market, and some models combine both functions for wider use:

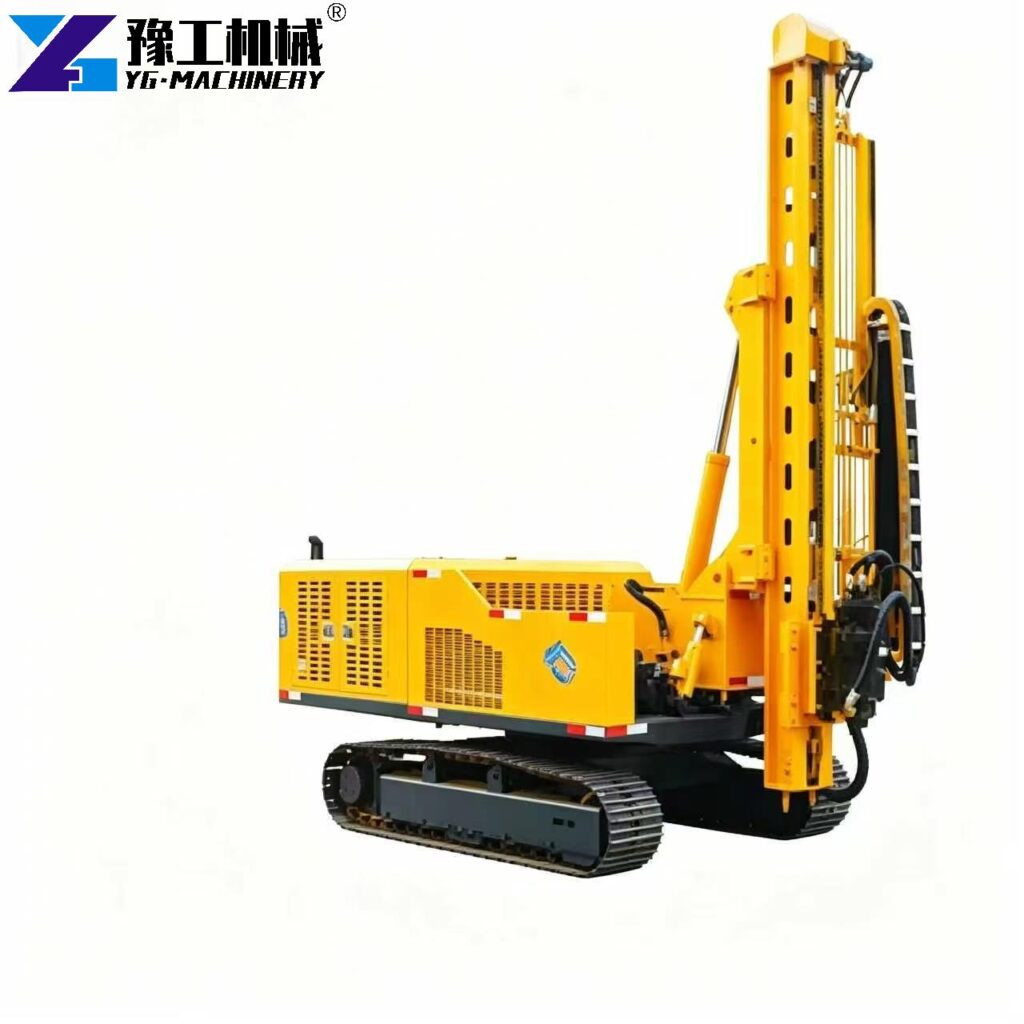

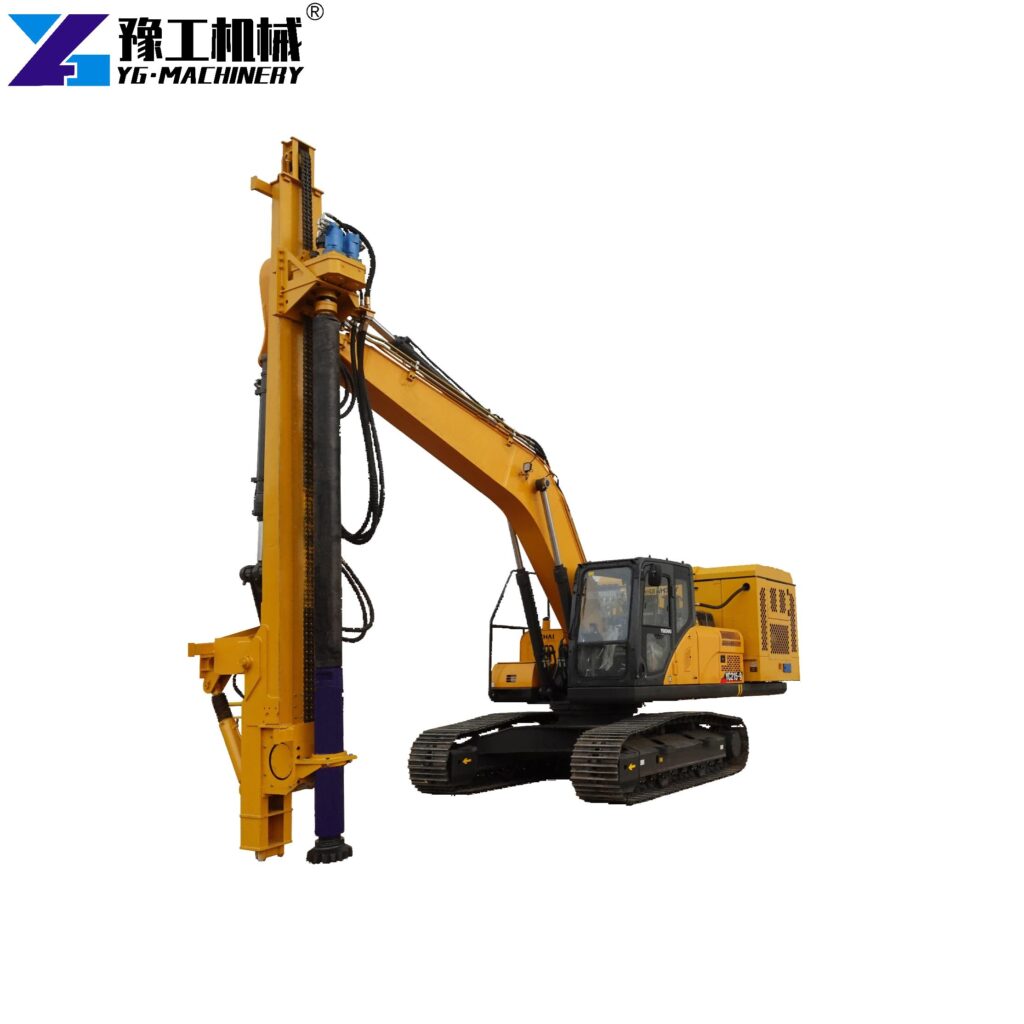

1. Drilling Type Photovoltaic Pile Driver (Spiral & DTH)
Drilling type is the most widely used photovoltaic pile driver, which is divided into spiral drilling and DTH (Down-the-Hole) drilling according to the working principle.

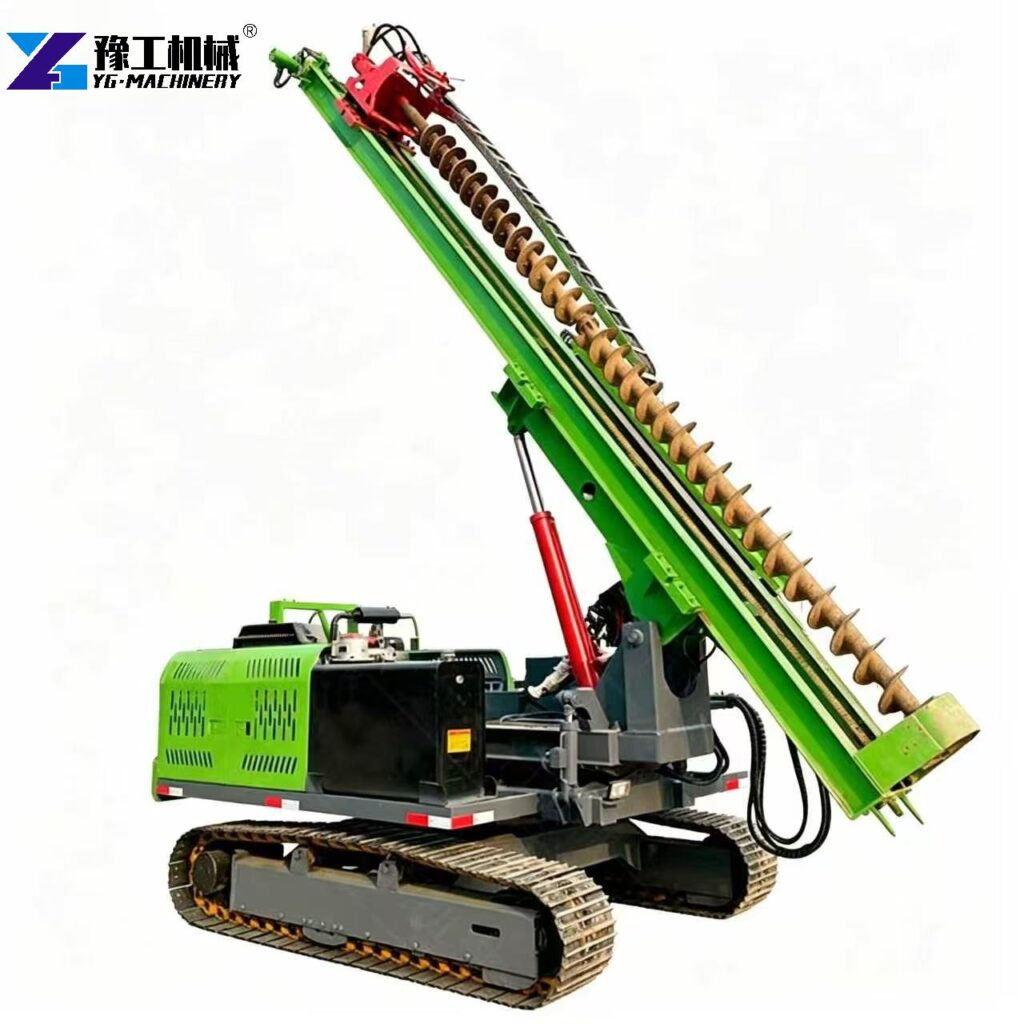

- Spiral drilling
Suitable for soft geological conditions such as soil, clay and loose sand layer. It can quickly drill holes and install ground screws, with high construction efficiency and low equipment cost.
- DTH drilling
It needs to be used with an air compressor, mainly for hard rock strata and complex geological layers. It can break rocks and drill holes to meet the foundation construction needs of rocky solar sites.
- Core advantages
High construction precision, wide geological adaptation, suitable for pure drilling construction scenarios.
- Limitation
Single-function drilling models do not have hydraulic pile pressing function.

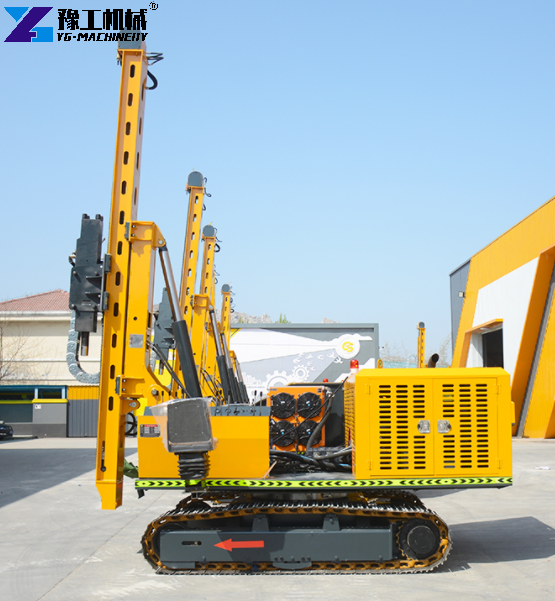

2. Ramming Type Photovoltaic Pile Driver (Hydraulic Hammer)
Ramming type photovoltaic pile driver adopts hydraulic hammer as the core working component, and completes pile installation by impact pressing.
- Application scenarios
Suitable for soft to medium-hard ground, with fast piling speed and high efficiency, which is suitable for large-scale flat solar farm construction.
- Core advantages
Simple operation, low failure rate, fast construction progress, suitable for batch piling operations.
Key Selection Principles for Photovoltaic Pile Driver
- Confirm construction mode
Clarify whether the project needs drilling, ramming or dual-function operation, and select the corresponding working mode model.
- Match geological conditions
Soft ground chooses spiral drilling or hydraulic ramming; rock strata must be equipped with DTH drilling function.
- Determine pile length demand
Select models with matching pile length according to the design requirements of solar support foundations (3m/6m are common specifications).
- Consider regional standards
European and other high-standard markets need to select models that meet local certification and configuration requirements.
- Budget control
Balance procurement cost and product performance, and select cost-effective models for cost-sensitive projects.
Customer Case
A Spanish EPC contractor specializing in large scale ground mounted solar farms used our pile driver on a project with mixed soil, clay and rock geology. The client said: “This pile driver handles our complex mixed geology perfectly. It has significantly boosted our construction efficiency and helped us finish the project ahead of schedule. With reliable performance and high precision, it’s our go-to choice for solar foundation work and we’ve already placed repeat orders for new projects.”
Frequently Asked Questions
A photovoltaic pile driver is made for solar foundation work, focusing on ground screws and foundation drilling. A guardrail pile driver is for highway guardrails, with different power heads and working settings.
Yes. Drilling models with DTH function can work with an air compressor to drill through rock.
It’s perfect for mixed soil and rock sites, with better adaptability and higher efficiency. For single-type ground, a single-function model works fine and saves cost.
