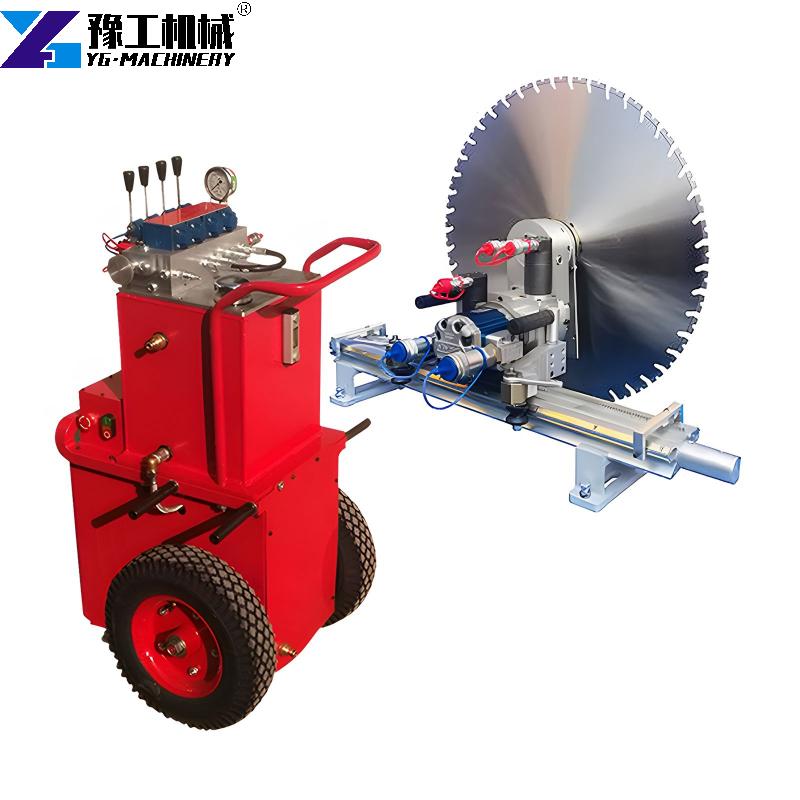

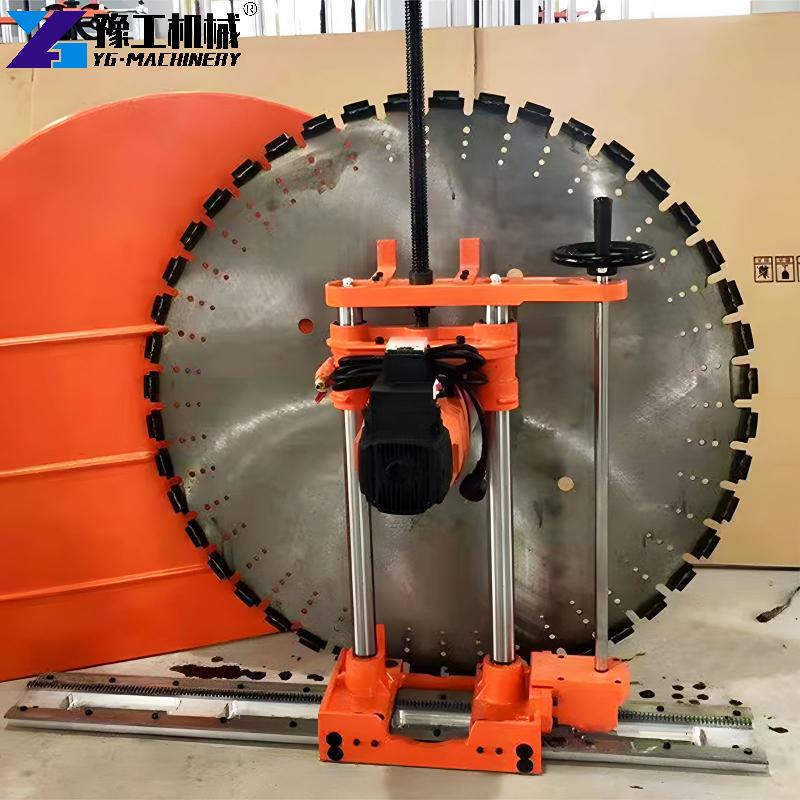

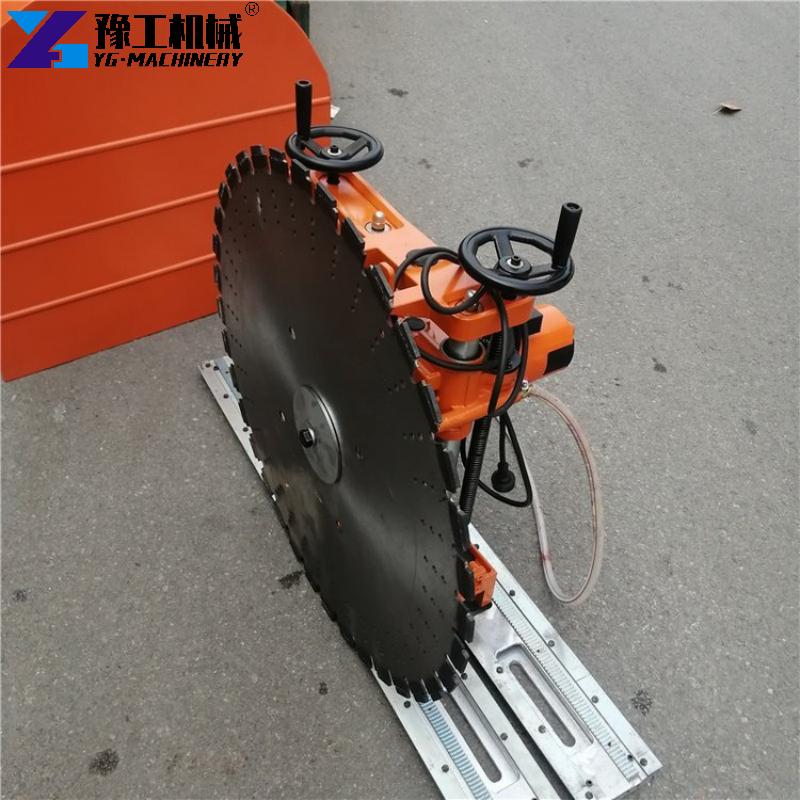

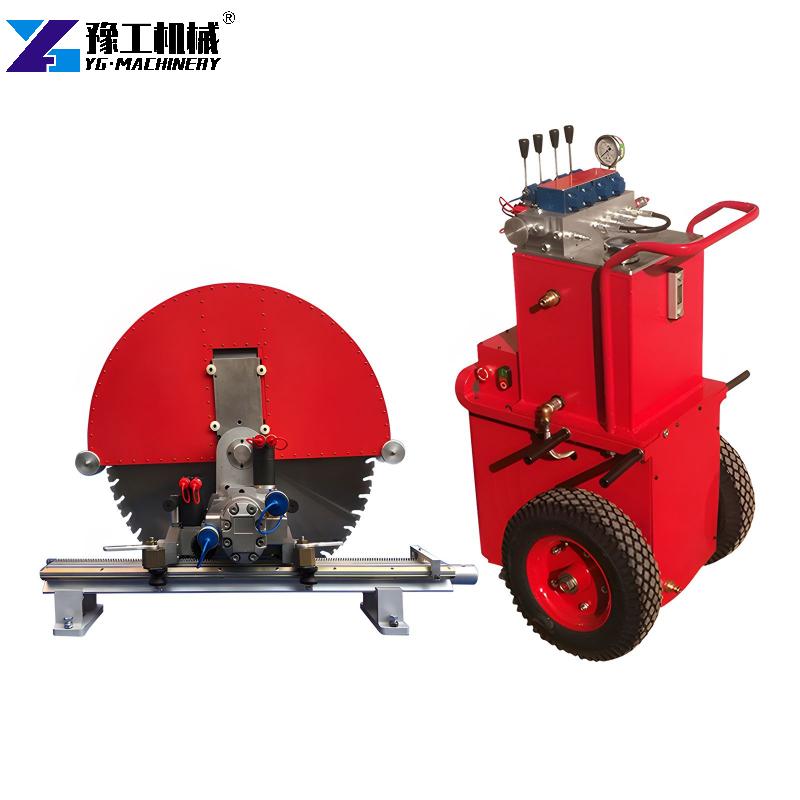

Wall saw machine is a professional cutting device specially designed for flat surfaces such as reinforced concrete walls, brick walls and stones. It is widely used in building reconstruction, structural reinforcement and design modification projects, and can complete large-area wall cutting such as door openings, window openings and elevator openings. This equipment adopts static cutting technology to ensure no damage to the building structure, and effectively improves construction efficiency. As a professional wall saw manufacturer, we provide two types of Wall saw: hydraulic type and high-frequency type, to meet different construction needs.
Contact us now. 【WhatsApp/WeChat/Phone】+86 13837112713
Wall saw machine Core Technical Parameters：
| Model | 600TM | 700TM |
| Saw blade diameter range | 600-1400mm | 600-1600mm |
| Cutting depth | 620mm | 730mm |
| Center hole of blade | 60mm | 60mm |
| Saw blade life | 20㎡ | 20㎡ |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa |
| Max. oil flow rate | 100L/min | 100L/min |
| Gearing | Gear | Gear |
| Rotation speed | 450/900/1350Rpm | 600/850/1400Rpm |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm |
| Weight | 38kg | 39kg |
Core Advantages of Wall Saw Machine
1. Efficient Static Non-Destructive
Cutting Wall saw adopts low-vibration static cutting, effectively reduces structural damage risks in traditional construction, and one-time forming can greatly improve construction efficiency compared with chiseling construction.
2. Wide Cutting Depth Adaptation
Hydraulic Wall saw maximum cutting depth reaches 730mm, high-frequency model reaches 520mm, covering most thick wall cutting demands in building reconstruction and infrastructure projects.
3. Broad Voltage Compatibility
High-frequency model supports 220V/380V single/three-phase free switching, hydraulic model can customize 420V/440V/480V three-phase voltage, adapting to most countries’ power standards around the world.
4. Convenient & Safe Operation
Full series equipped with wireless remote control, high-frequency model adopts split design, 1 person can complete independent installation; remote control distance up to 300m, effectively improves construction safety and operation flexibility.
5. High Power & Stable Efficiency
Hydraulic model maximum power 32KW, high-frequency model 17KW, cutting speed is about 2-3 times that of ordinary electric wall saws, supporting long-term continuous construction.

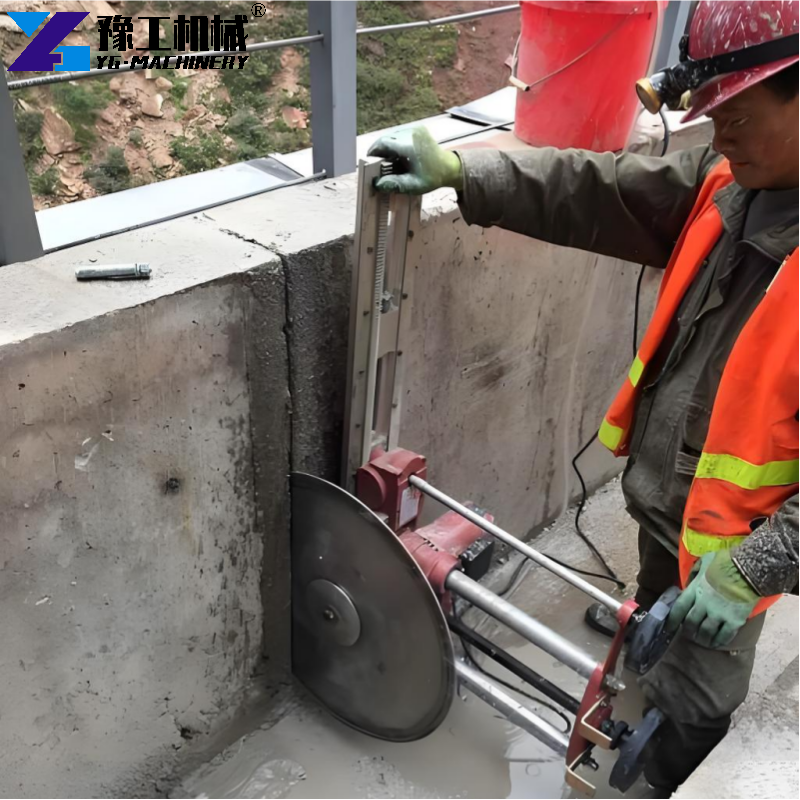

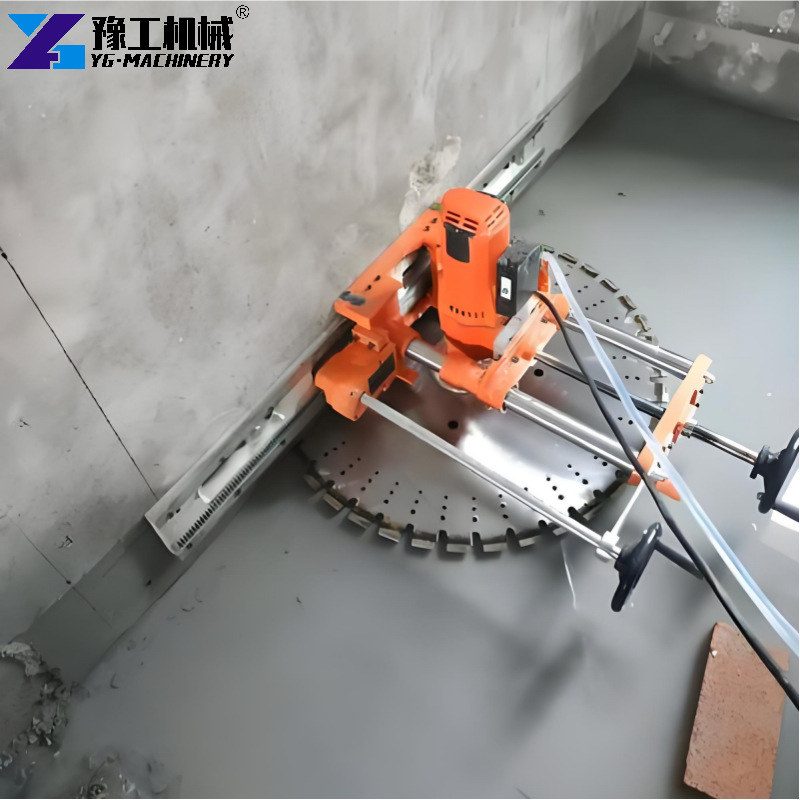

Application Scenarios of Wall Saw Machine
- Old building reconstruction, structural reinforcement and design modification projects
- Cutting and slotting of reinforced concrete walls, brick walls and stones
- Opening construction of door holes, window holes and elevator holes on walls
- Precision flat surface cutting of infrastructure projects
As a high-efficiency concrete wall saw cutting machine, it fully meets the cutting needs of civil, commercial and infrastructure construction.
Customer Case
Our Wall saw has been supplied to a professional construction reinforcement and renovation company in Israel, which is mainly engaged in commercial building reconstruction and old building structure upgrading projects. The customer adopted our hydraulic and high-frequency wall saws for reinforced concrete wall cutting, door/window/elevator hole opening and static structural renovation. With stable equipment performance and efficient non-destructive cutting effect, it helped the customer complete the project efficiently while protecting the original building structure.
“YG’s wall saw works reliably and cuts precisely, which fully meets our demands for building reconstruction and structural safety.”
How to Choose the Right Wall Saw Machine
- Confirm cutting depth: Select 600TM (620mm), 700TM/800TM (730mm) or high-frequency model (520mm) according to wall thickness.
- Confirm power type: Choose hydraulic model for three-phase power supply; choose high-frequency model for single-phase power demand.
- Confirm operation needs: Select wireless remote control version for heavy-duty and long-distance operation.
Frequently Asked Questions
Q1: How to match the saw blade for the wall saw?
A: You can select the corresponding saw blade according to the actual cutting depth; 800mm/1000mm/1200mm/1400mm/1600mm saw blades are available for different working conditions.
Q2: What daily maintenance does wall saw need?
A: Regularly check the oil circuit, circuit and transmission parts, keep the equipment clean, and carry out maintenance according to the instruction manual to keep it in good working condition.
Q3: What is the difference between a wall saw and wire saw?
A: Wall saw is suitable for flat wall cutting, while wire saw is more suitable for thick concrete, underwater cutting and metal cutting; you can choose according to construction objects and scenarios.
Contact YG Machinery for Your Wall saw machine Demand
YG Machinery focuses on R&D and production of professional cutting equipment, providing stable and reliable Wall saw solutions for global customers. If you have flat surface cutting needs, please contact us immediately to get professional technical support and customized engineering solutions!
