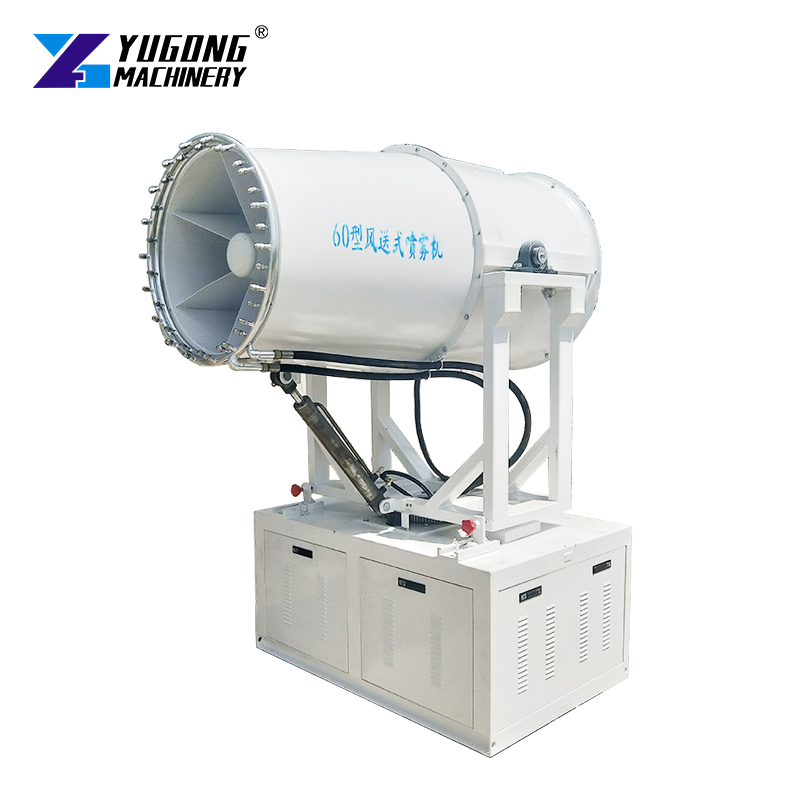

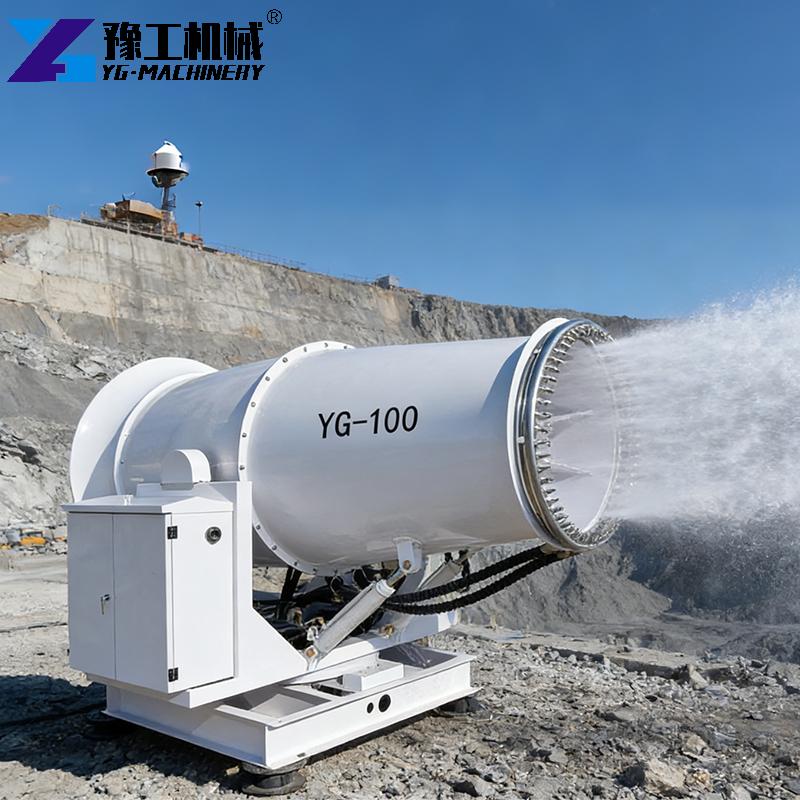

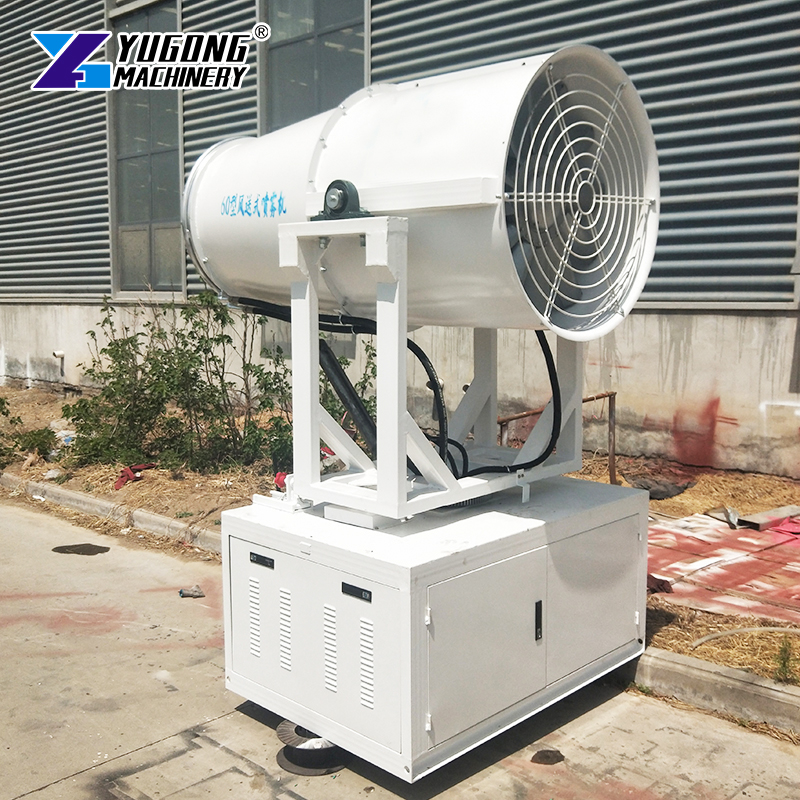

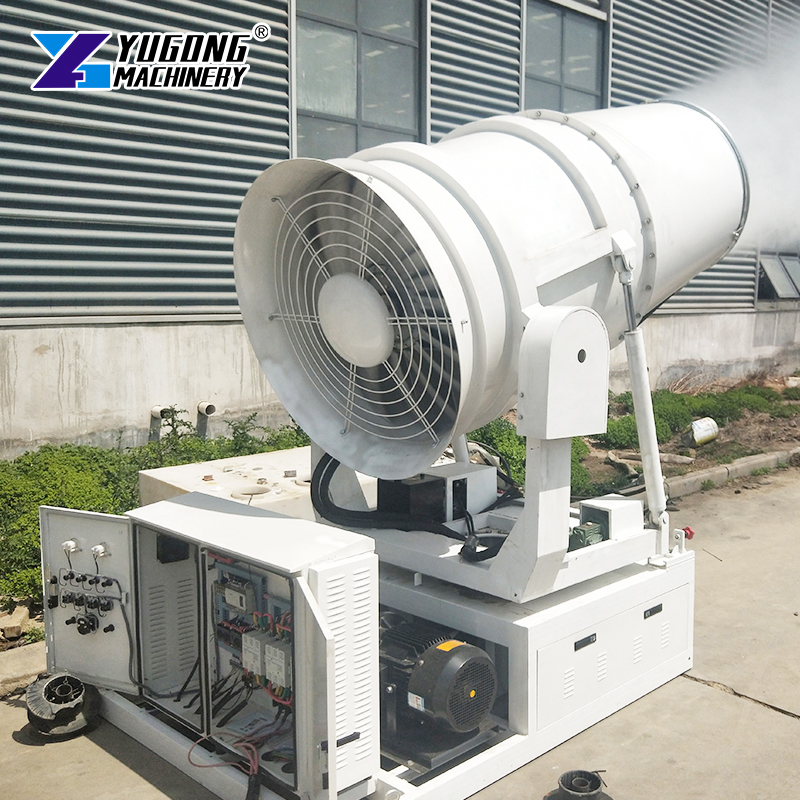

Dust pollution, odor issues and large-scale disinfection needs are common pain points in mining, construction, environmental sanitation and agricultural industries. A Fog Cannon Machine is designed to solve these problems efficiently, with stable performance and strong adaptability for both daily dust suppression and emergency epidemic prevention work. It is widely used in mines, construction sites, coal yards, urban public areas, forestry and agricultural planting, as well as post-disaster disinfection and deodorization scenarios, bringing safe and clean working environments to global industrial and civil users.
Fog Cannon Machine Technical Parameters:
| Item | YG-20 | YG-30 | YG-40 | YG-60 |
| Spraying distance | 20m | 30m | 40m | 60m |
| Engine type | Electric | Electric | Electric | Electric |
| Fan motor power | 3kW | 3kW | 4kW | 11kW |
| Pump motor power | 1.5kW | 1.5kW | 2.5kW | 7.5kW |
| Horizontal rotation | 360° | 360° | 360° | 360° |
| Nozzle quantity | 8 | 10 | 16 | 22 |
| Water consumption | 1000L/h | 1500L/h | 3000L/h | 7500L/h |
| Recycled water pipe | 1400mm | 1400mm | 1400mm | 1400mm |
| Machine dimensions | 1170*940*1700mm | 1170*940*1800mm | 1650*1200*2200mm | 1700*1200*2200mm |
| Net weight | 200kg | 250kg | 300kg | 350kg |
Core Advantages of Fog Cannon Machine
- High-efficiency dust suppression and disinfection
Ultra-fine mist particles capture floating dust quickly and cover the target area evenly, achieving great effects of dust removal, cooling, disinfection and deodorization.
- Wide application adaptability
No modification for pesticide spraying; ceramic/stainless steel pump optional for disinfection, adapting to pure water, pesticide, disinfectant and other liquids.
- Flexible operation modes
Support manual/semi-automatic/fully automatic control, suitable for temporary construction site work and long-term industrial operation.
- Sturdy and durable structure
Made of galvanized pipe, cold-rolled iron plate and aluminum alloy fan blade with stainless steel nozzles; 30m industrial model weighs 320kg, equipped with national standard copper motor and stainless steel multi-stage centrifugal pump, 100m effective remote control distance, resistant to complex working conditions with low failure rate.
Application Scenarios of the Mist Cannon Machine
This fog cannon machine covers a full range of working scenarios. It is widely used for dust suppression in mining sites, coal yards, steel plants and stone processing factories; it supports pesticide spraying in agriculture and forestry, disinfection and deodorization in landfills; it also serves municipal sanitation, urban public places, and large-scale sterilization and epidemic prevention after natural disasters, fully meeting the needs of industrial and civil dust control and spraying.
Customer Cases
A Saudi Arabian mining and bulk material handling contractor used our automatic fog cannon for dust control in coal yards and ore processing zones with high-temperature and heavy-dust working conditions. The client said: “This fog cannon machine delivers exceptional dust suppression performance in our harsh on-site environment. It covers a wide area, runs stably around the clock, and greatly improves our on-site air quality. With durable structure and easy maintenance, it has become our core dust control equipment.”
FAQ About Fog Cannon

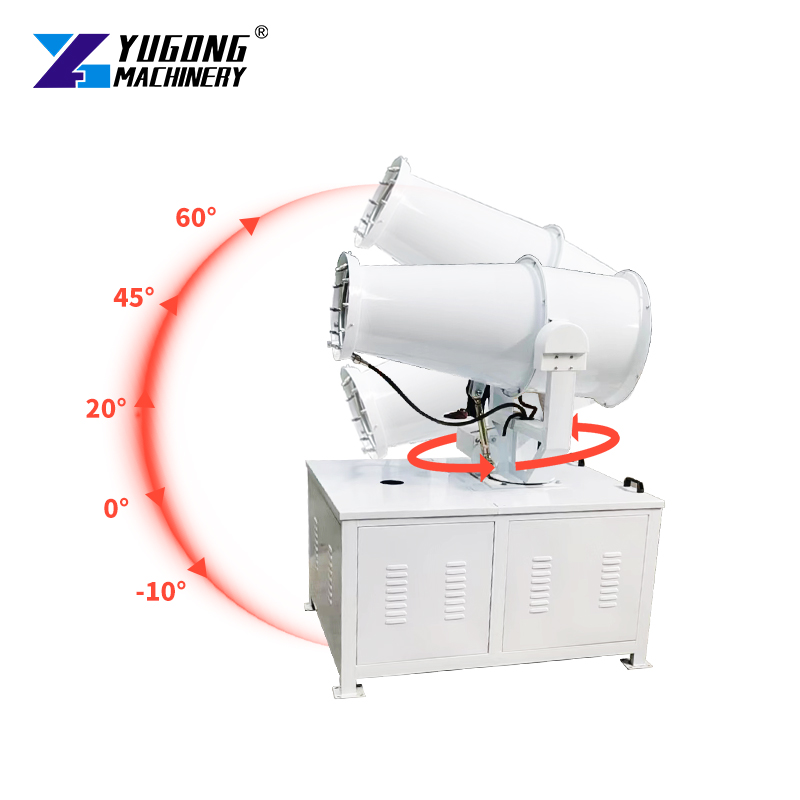

Yes, the automatic model can realize automatic adjustment of horizontal and vertical angles, which is suitable for long-term fixed operation in industrial sites such as mines and steel plants, reducing manual operation intensity.
Yes, we can provide stainless steel pump bodies or ceramic pump bodies according to the liquid properties to ensure corrosion resistance and stable use.
Keep the water source clean and free of impurities to avoid damaging the pump body and nozzles; do not adjust the pressure gauge at will to ensure the stability of the equipment system.
Why Choose YG Machinery
YG Machinery is a professional engineering machinery manufacturer with years of R&D and cross-border export experience. We equip our products with national standard copper motors and high-quality core parts to ensure stable performance, and offer customized services, complete export packaging, logistics and after-sales support, winning global customer recognition with quality-focused solutions.
Fog Cannon Machine In YG Machinery
YG Machinery is a trusted Fog Cannon Machine manufacturer with global export service. If you have demands for dust control, disinfection or spraying projects, send us your inquiry now. We will provide you with professional solutions and responsive support at any time.
