A mini concrete pump is a compact, mobile mechanical device designed for construction areas where large equipment has difficulty accessing. It transports and places concrete directly to the designated work point via a pumping mechanism and a flexible pipeline system. Unlike full-sized concrete pumps used for high-rise buildings or large infrastructure, mini pumps are primarily intended for small-scale projects such as residential foundations, rural construction, interior renovations, and sites with limited space. These units typically feature a simple hydraulic system, a small footprint, and easy setup. They can be powered by electric motors or diesel engines, depending on site conditions.
Mini Concrete Pump Parameters:

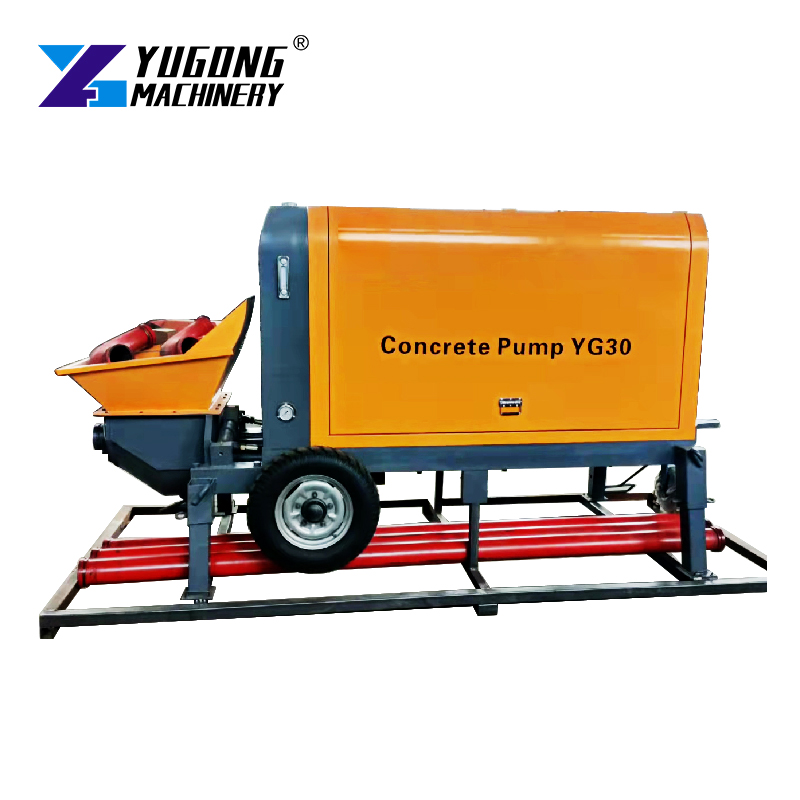

| Spec/Model | YG-10 | YG-20 | YG-30 | YG-40 |
| Work efficiency | 6m³/h | 12m³/h | 15-18m³/h | 20-22m³/h |
| Motor power | 15kw | 22KW | 37KW | 45KW |
| Working pressure | 15MPa/10MPa | 18MPa/12MPa | 18MPa/15MPa | 23MPa/15MPa |
| Aggregate size | 0.5-1.5cm | 0.5-2cm | 0.5-2cm | 0.5-2cm |
| Vertical/Horizontal conveying distance | 20m/50m | 40m/80m | 80m/100m | 120m/260m |
| Diameter of conveying pipe | 80mm | 80mm | φ80(100)mm | φ100(80)mm |
| Weight | 600KG | 1600kg | 2200kg | 2400kg |
| Dimensions | 1800x700x1100mm | 3400x1200x1600mm | 3800x1500x1600mm | 4000x1500x1550mm |
| Standard configuration | 10m steel pipe, 10m hose | 40m steel pipe, 10m hose | 90m φ80 steel pipe, 10m hose | 120m φ80 steel pipe, 10m hose |
Key Features of Small Concrete Pump
- Compact and Portable Design
The unit’s small size allows it to pass through standard doorways and narrow passages, making it suitable for work in confined spaces such as interiors and basements.
- Stable S-Valve Reversing Technology
Utilizes an S-tube valve reversing system known for good sealing and low reversing resistance, ensuring continuous and smooth concrete flow while reducing the risk of pipeline blockage.
- Dual Power Options for Flexibility

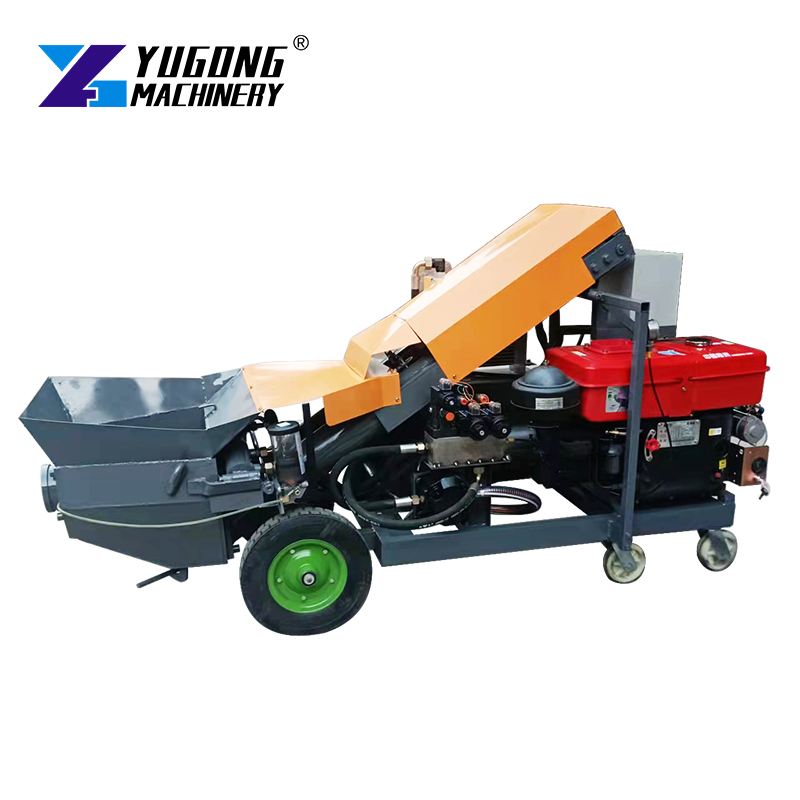

Available in both electric and diesel configurations. Electric models are suitable for indoor or noise-sensitive environments; diesel models require no external power source, making them ideal for remote or rural sites.
- Easy Operation and Maintenance
User-friendly control system allows operators to get started after brief training. The relatively simple structure contributes to lower daily maintenance costs.
Customer Case: Rural Foundation Pour in Queensland, Australia
A property owner in remote Queensland successfully poured a new workshop foundation using a diesel-powered mini concrete pump paired with a portable mixer. Located 30km from town with unpaved road access, the setup allowed concrete to be produced and pumped on-site through a 150-foot pipeline directly to the forms, overcoming the impossibility of ready-mix truck delivery.
“With the mini pump, we control everything. It handled the mix perfectly, and setup was straightforward. I wouldn’t do a rural project without one now.”
The project was completed in two days by a small crew, with the pump efficiently handling concrete containing 15mm aggregate without clogging.
Frequently Asked Questions About Small Portable Concrete Pump
No, they are different equipment. A conveying platform is a fixed or mobile auxiliary device for concrete transfer, while a pump truck is a vehicle-mounted machine with a chassis and folding boom. A mini concrete pump is usually a trailer mounted or portable unit, which is more compact and suitable for small construction sites.
Conveying distance includes both horizontal distance and vertical height. We provide clear data for different aggregate sizes to help you choose the right model for your project’s horizontal and vertical delivery needs.
Our machine supports dual control modes. They use a PLC intelligent control system for automatic operation, and are also equipped with wireless remote control for long-distance manual adjustment. You can switch freely according to site conditions.
Yes, it works well with fine stone concrete, mortar and conventional small-aggregate concrete, widely used for floor pouring and secondary structure construction.
Small Concrete Pump For Sale — YG Machinery
YG Machinery is committed to providing stable and efficient concrete pumping solutions for small-to-medium construction projects worldwide. Our mini concrete pump series is continuously optimized based on extensive field feedback, aiming to balance performance, portability, and reliability. For more precise model recommendations,please provide specific project details (e.g., project type, concrete requirements, conveying distances). Our technical support team will offer professional product suggestions and solution references.
