Hydraulic rock splitter is a professional static rock breaking equipment composed of a power station and a splitting gun, specially used for rock splitting, ore secondary disintegration and concrete component demolition in construction, engineering construction and ore mining operations. It features adjustable oil pressure, safe operation and high breaking efficiency, and is a core device for non-explosive hard material crushing operations. The portable hydraulic stone splitter is renowned for its flexibility and power in demanding environments. Contact us for a quote. 【WhatsApp/WeChat/Phone】+86 13837112713
Hydraulic Rock Splitter Parameters:
| Parameter | YG-250 | YG-350 | YG-450 |
| Wedge Length (mm) | 250/520 | 350/620 | 450/720 |
| Piston Stroke (mm) | 90/220 | 90/220 | 90/220 |
| Drilling Depth (mm) | ＞500 | ＞700 | ＞900 |
| Drilling Diameter (mm) | 42 | 46 | 46 |
| Crack Width (mm) | 10-20 | 10-20 | 10-20 |
| Splitting Time (s) | 10-15 | 10-15 | 10-15 |
| Splitting Force (T) | 500 | 800 | 800 |
| Weight (kg) | 25 | 25 | 25 |
Simple Operation, Powerful Results: See How It Works

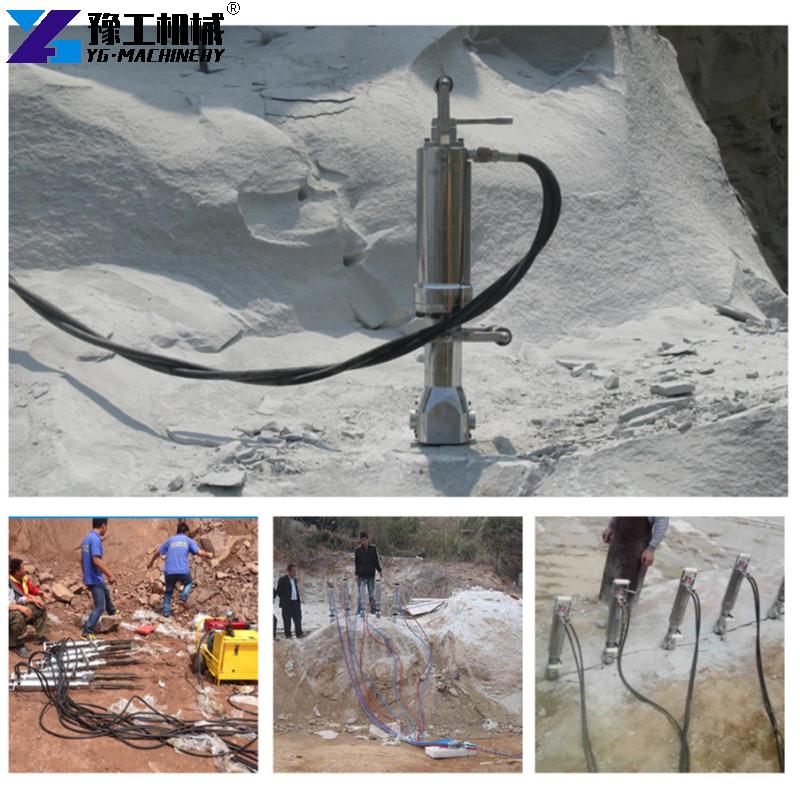

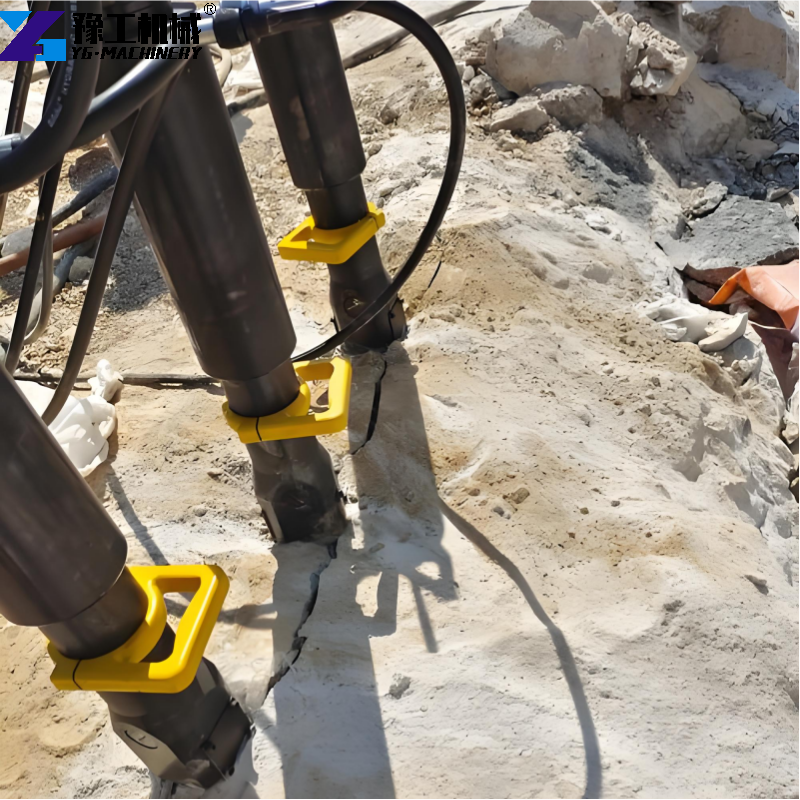

The machine is driven by high-pressure oil output from the power station to act on the oil cylinder of the splitting gun. The high-pressure oil pushes the middle wedge of the splitting gun to move forward, which then spreads the two side wedges outward to release huge static splitting force. This force quickly creates cracks in rocks, ores or concrete in a predetermined direction, completing the splitting and crushing of hard materials in a short time.
Hydraulic Rock Splitter structure and configuration

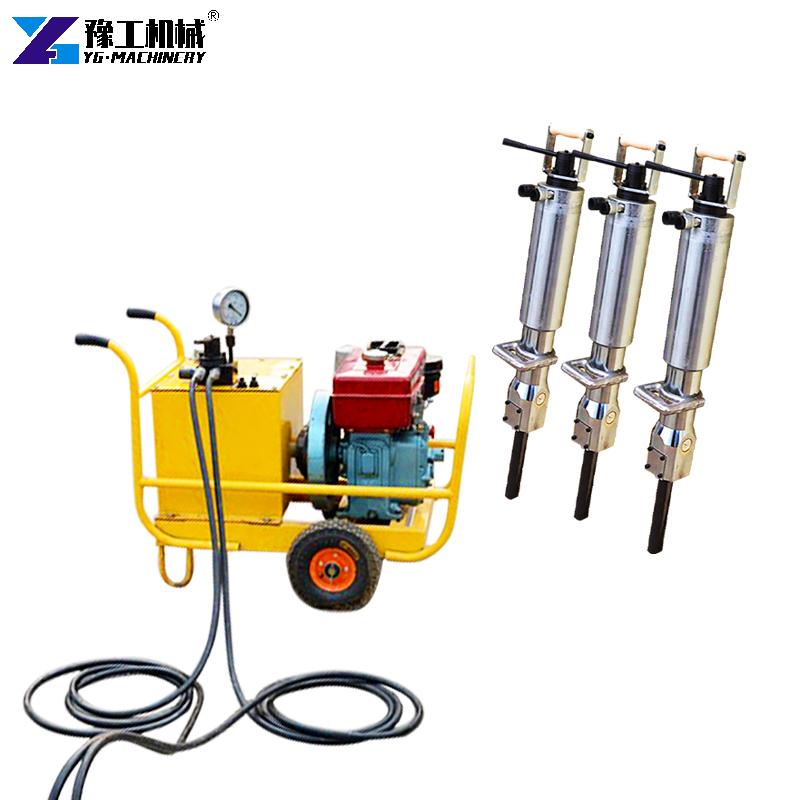

The hydraulic rock splitter consists of two core parts: power station and splitting gun, with a humanized structural design for easy on-site operation:
- Power Station
Equipped with motor, pressure gauge, oil pump reversing valve, small cart and other components, available in electric and diesel power types for free selection.
- Splitting Gun
Composed of high and low pressure oil pipes, middle wedge, side wedges, quick connector, handle and splitting gun reversing valve.
- Matching Accessories

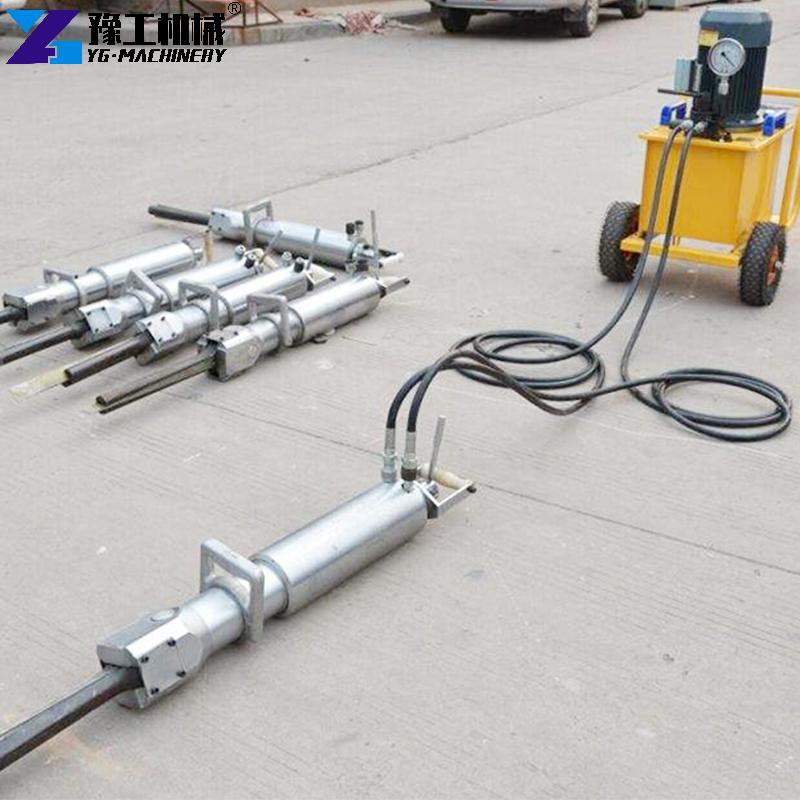

One power station can be equipped with up to 6 splitting guns (a flow divider is required for 2 or more guns), equipped with customized length oil pipes and wearing parts (middle/side wedges).
Core Advantages: Efficiency, Safety & Portability
- The splitting force reaches 500-800 tons
A single split takes only 10-15 seconds. It uses huge static force to quickly crush rocks and concrete, significantly improving construction efficiency.
- The equipment weighs as little as 30 kilograms
A single splitting gun is extremely light in weight and can be carried and moved by one person, perfectly adapting to complex and restricted construction environments such as mountainous areas and tunnels.
- Non-blasting static technology
Crushing by hydraulic static force ensures a safe, quiet construction process with no dust pollution, making it particularly suitable for areas with high safety and environmental requirements.
- Optional electric/diesel power
Two power sources are provided. The diesel model is specially designed for mines and wild fields without power supply, while the electric model is suitable for urban construction sites.
- Modular design, universal vulnerable parts, low maintenance cost
The structural design is simple. The main vulnerable parts (such as wedges and oil pipes) are universal and available for long-term supply. Daily maintenance is easy, which effectively reduces the long-term use cost.
After-Sales
Global after-sales support: operation manuals and on-site debugging videos; 24/7 technical online guidance; long-term supply of universal wearing parts (wedges, oil pipes).
Customer Case
Case 1: Ore Mining Enterprise in Mongolia
The enterprise purchased YG-450 hydraulic rock splitter (1 pump with 3 guns) for open-pit ore secondary disintegration. “The 800T splitting force splits large ore in 10s, and the diesel power station is perfect for non-power mining areas,” said the mining director, the equipment improved mining efficiency by over 60% and ensured on-site operation safety.
Case 2: Construction Company in Malaysia

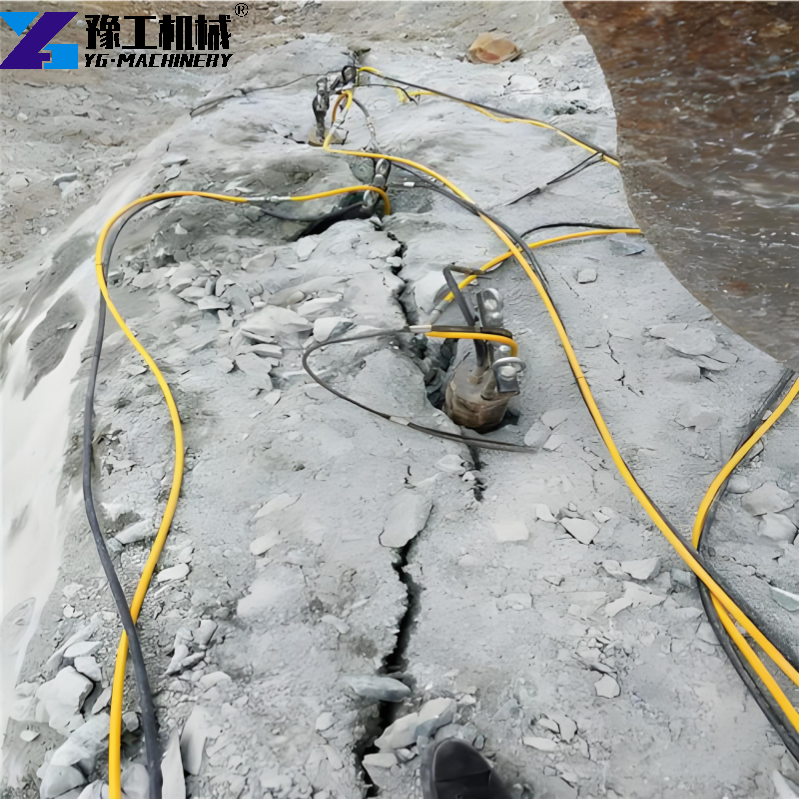

The company adopted YG-350 portable hydraulic stone splitter for urban concrete building demolition. “Lightweight and portable, static breaking has no noise or flying stones, fully meeting urban construction standards,” shared the project manager, the equipment realized efficient and environmentally friendly demolition in narrow urban areas.
FAQ: Setup, Power & Maintenance
1. How many splitting guns can one power station match?
One power station can be equipped with up to 6 splitting guns; 2 or more guns need to be equipped with a flow divider, and oil pipe length can be customized.
2. What power types are available for the power station?
Electric and diesel power stations are optional; electric for sites with convenient power supply, diesel for no-power construction areas (note voltage/frequency for overseas electric models).
3. What hydraulic oil is suitable for the equipment?
Shell 46# hydraulic oil is recommended, fill up to 90% of the oil level gauge (38L) before startup to avoid oil pump idling.
Professional Hydraulic Rock Splitter Supplier–YG Machinery
Our YG series hydraulic rock splitter is a professional static rock breaking equipment with mature technology and reliable performance, covering all models of YG-250/350/450 to meet the different construction needs of mining, construction, concrete demolition and other industries. As a professional construction machinery supplier, we provide one-stop procurement solutions including equipment configuration, customized accessories and global after-sales service. The hydraulic rock splitter for sale from YG Machinery represents excellent value for money. For a detailed hydraulic rock splitter price and tailored configuration matching, send us an inquiry now. Our team will also provide you with professional on-site operation guidance! Contact us for a quote.【WhatsApp/WeChat/Phone】+86 13837112713
