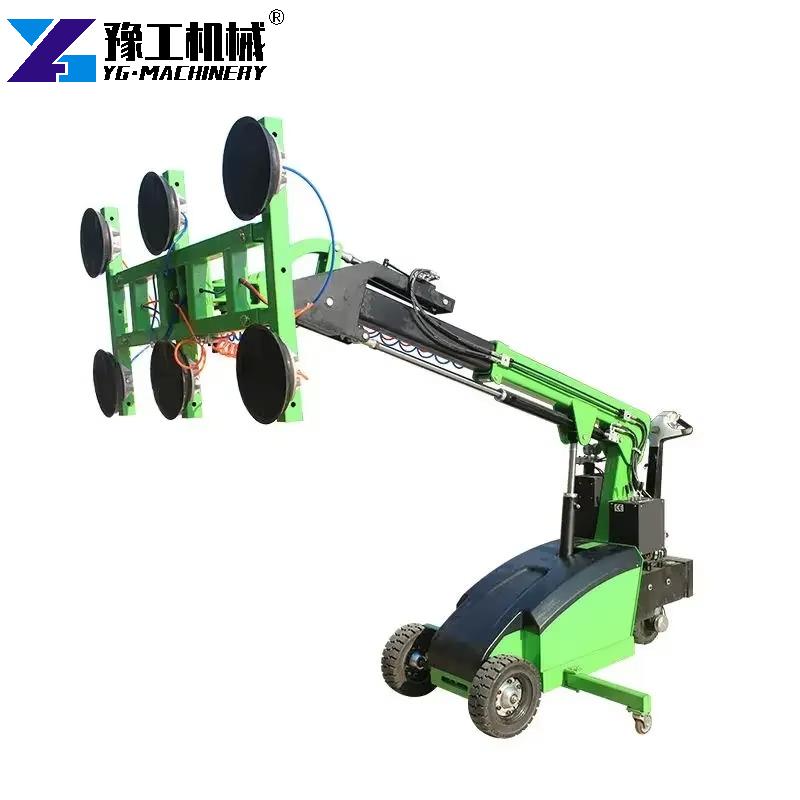

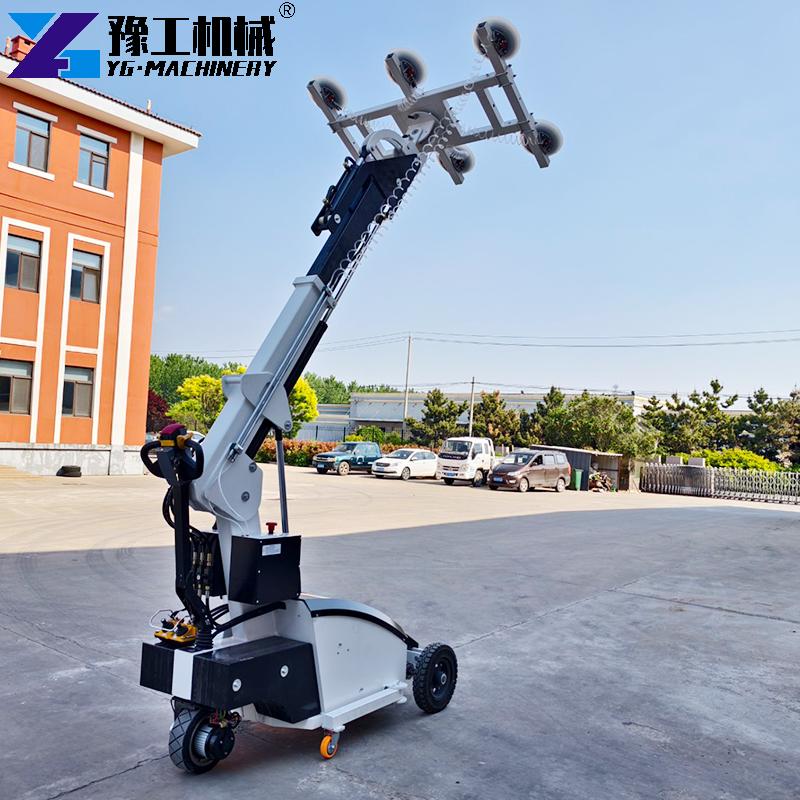

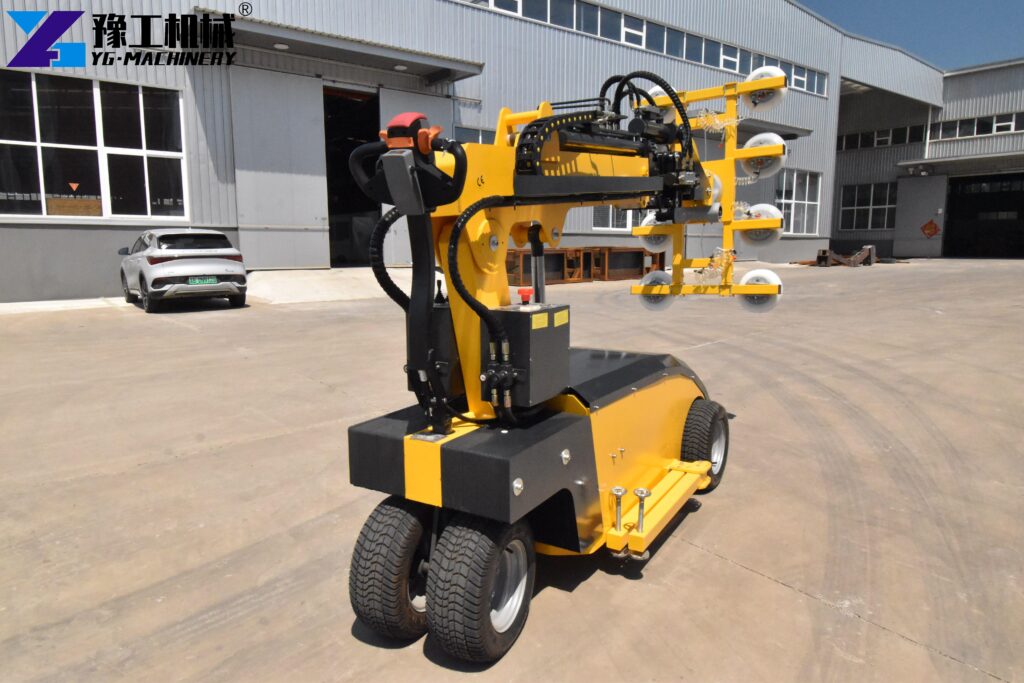

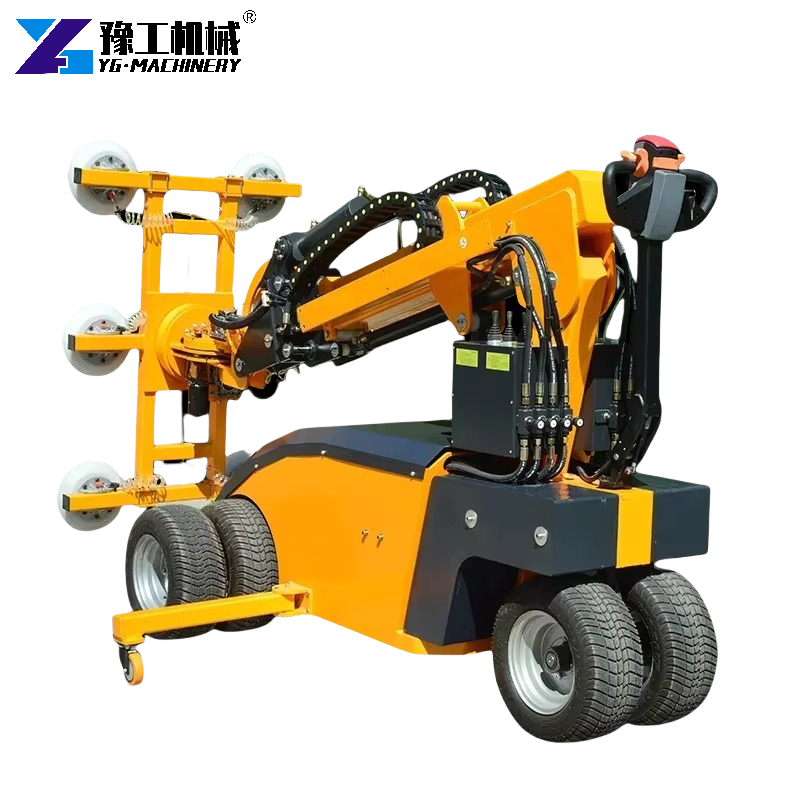

The glass lifting robot is an industrial device for safe lifting, transporting and precise positioning of large, heavy or fragile glass panels. Powered by glass vacuum lifting equipment, it uses vacuum suction cups to hold glass securely without damage, replacing manual labor to cut safety risks and improve efficiency. Supporting multi-axis rotation and stable movement, it suits indoor and outdoor scenarios like residential window and commercial curtain wall installation. For those aiming to buy glass vacuum lifting equipment, it offers cost-effective performance with transparent glass lifting robot price and broad adaptability to diverse project needs.
The Glass Lifting Robot Parameter:
| Model | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 |
| Load (Retracted) | 300kg (Retracted) | 400kg (Retracted) | 500kg (Retracted) | 600kg (Retracted) | 800kg (Retracted) |
| Load (Extended) | 150kg (Extended) | 200kg (Extended) | 250kg (Extended) | 300kg (Extended) | 400kg (Extended) |
| Lifting Height | 3600mm | 3600mm | 3700mm | 3700mm | 5000mm |
| Suction Cup number | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Travel Motor | 16V/1500W | 16V/1500W | 24V/1500W | 24V/1500W | 24V/1200W |
| Lifting Motor | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/12L |
| Packing size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 |
| N.W/G.W (kg) | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
Core Advantages of The Glass Lifting Robot
- Enhanced On-Site Safety
Equipped with 4–8 industrial suction cups and reliable vacuum systems, our glass handling robot delivers a secure, damage-free grip on glass panels, eliminating manual lifting risks and glass breakage.
- Boosted Work Efficiency
With dual load capacity (300–800kg retracted / 150–400kg extended) and lifting heights up to 5m, this glass handling robot cuts labor needs drastically, speeding up both residential and high-rise commercial glass installation.
- Versatile All-Scenario Adaptability
Our glass vacuum lifting equipment features durable motors, intelligent charging, and a stable chassis, working seamlessly in indoor narrow spaces and outdoor construction sites for all glazing tasks.
- Cost-Effective & Transparent Pricing
We offer competitive glass lifting robot price for all GL-LD models, making it easy to buy glass vacuum lifting equipment that fits your budget, with strong long-term ROI from reduced labor and material waste.
Customer Case
In a high-rise curtain wall renovation project in Madrid, Spain, the construction team faced tight on-site space, heavy large-size glass panels and strict construction safety requirements. After using professional glass handling equipment with stable vacuum suction and flexible lifting performance, the team completed the installation efficiently with only one operator per shift, avoiding glass damage and safety accidents during handling, and successfully finished the entire facade project ahead of schedule.
The local project manager commented: “This equipment greatly improved our construction efficiency and ensured zero damage to glass, which fully meets our high standards for urban construction projects.”
FAQ About Vacuum Glass Lifter
It can safely handle standard flat glass, large-size curtain wall glass and thick architectural glass, with stable suction and no surface damage.
Yes, its compact chassis and flexible movement make it ideal for narrow indoor spaces and urban construction sites with limited room.
Normally only one operator is enough, which greatly reduces labor input and improves construction safety.
We provide complete after-sales service, including operation guidance, spare parts supply and long-term technical support for global customers.
Why Choose YG Machinery
As a professional manufacturer of construction machinery, YG Machinery has been focusing on the R&D and production of safe and efficient glass handling equipment for many years. Our glass lifting robot combines stable performance, reasonable structure and reliable safety design, which can perfectly meet the glass installation needs of construction projects around the world. We not only provide high-quality equipment, but also offer considerate technical support and after-sales service to help global customers improve construction efficiency, reduce costs and achieve safer and more efficient on-site operation.
Get Your Quote Now
If you are looking for reliable glass handling equipment for your construction projects, feel free to contact YG Machinery today. Our professional team will provide you with detailed specifications, competitive quotes and customized solutions according to your actual needs. We look forward to cooperating with you and creating more efficient and safer construction solutions together.
