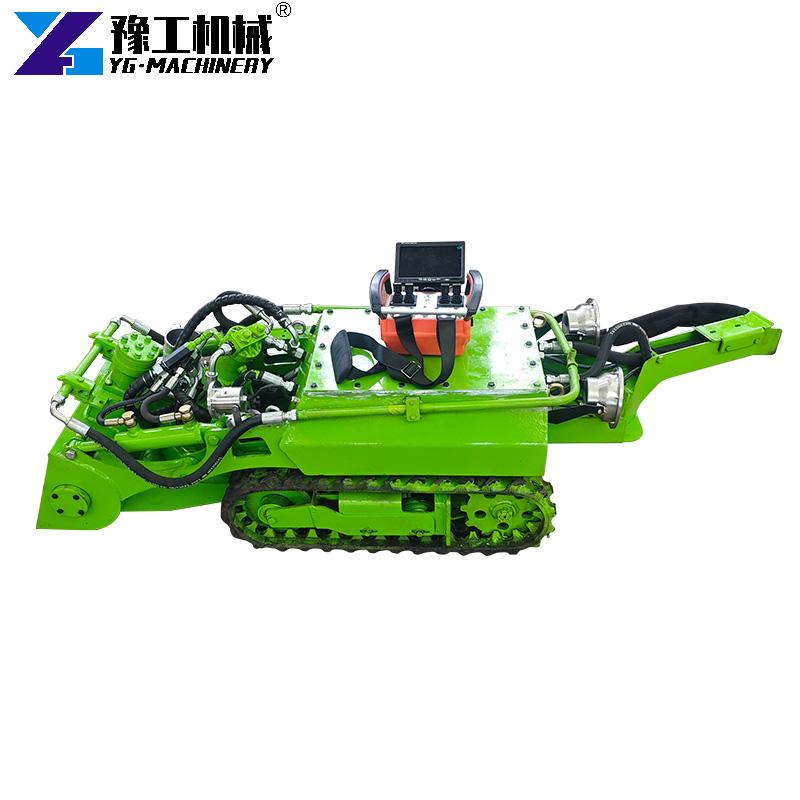

A dredging robot is an automated machine designed to remove sediment, mud, sand, and other debris from the bottom of water bodies. It works without the need for constant human operation, making it safer and more efficient than traditional dredging equipment. Unlike manual dredging or large dredgers, the dredging robot is compact, flexible, and easy to transport. It can reach narrow or hard-to-access areas, such as small rivers, lakes, and industrial ponds, where large equipment cannot go. This makes the Mud cleaning robot a versatile solution for various dredging needs.
The Dredging Robot Parameters:
| Parameter | YG-500 | YG-600 | YG-900(800) |
| Body Dimensions (mm×mm×mm) | 1250×500×620 | 1450×600×650 | 1750×900×750 |
| Dredging Width (mm) | 500 | 600 | 900 |
| Travel Speed (M/min) | 3-9 | 3-17 | 3-17 |
| Pumpable Particle Diameter (mm) | 20 | 40 | 40 |
| Pump Lift (m) | 15 | 30 | 40 |
| Underwater LED Lights (pcs) | 2 | 2 | 2 |
| Cable Winding Speed (r/min) | 0-10 | 0-10 | 0-10 |
| Underwater Pipeline Length (m) | 50 | 50 | 50 |
| Main Motor Power (KW) | 22 | 22/30 | 37(30) |
| Working Efficiency (m³/h) | 100 | 150 | 200 |
| Auxiliary Pump Motor Power (KW) | 3 | 3 | 3 |
| Sewage Pipe Pressure Resistance (kg) | 20 | 20 | 20 |
| Applicable Minimum Pipe Diameter (m) | 0.7 | 0.7 | 1 |
Key Parameters Of The Dredging Robot
Weight: 50-200 kg
Dredging Depth: 1-90 meters
Dredging Capacity: 10-50 cubic meters per hour
Power Supply: Electric or diesel
Operation Mode: Remote control
Material: Anti-corrosion steel
Advantages Of Using A Sludge Cleaning Robot
· High-Efficiency Operation
With 100-300 cubic meters per hour processing capacity, it works 24h continuously without heating; its modular unit crushes 40mm gravel/hard sediment, and cooperates with filter presses to cut mud volume and transportation costs by 50%.
· Safe & Reliable Operation
Wireless remote control realizes zero-contact operation, keeping operators away from toxic/flammable/narrow harsh environments and completely eliminating personal safety accident risks.
· Strong Complex Scenario Adaptability
Compact structure fits narrow spaces; it works stably in 3m/s water flow and -20℃ to 60℃ temperatures, adapting to typhoon seasons, northern winters and various on-site conditions.
· Low Long-Term Operation Cost
The full hydraulic system saves about 80,000 RMB in annual electricity fees per unit; the equipment has a simple structure, low failure rate and easy daily maintenance, reducing later costs.
· Visual & Precise Construction
1080P real-time image transmission makes dredging effect visible; the soft operation head avoids scratching pipe walls or damaging water bottom structures, cutting subsequent repair costs.
Customer Cases
Case 1: A Canadian customer purchased our 500-type electric Mud cleaning robot for lake waterfront dredging; the equipment’s remote control operation and 100 cubic meters per hour capacity realized efficient and safe dredging for his personal waterfront property, with customized 4-inch slurry pump and steel wire sewage pipe matching his local use needs perfectly.
Case 2: A Bolivian mining enterprise chose our dredging robot for pond sediment cleaning; the compact structure and strong adaptability of the equipment solved the problem of narrow space operation, and the 24-hour continuous work performance greatly shortened the construction period.
All customers highly praised the stable quality of YG Machinery’s Mud cleaning robot and our one-stop service from model selection to after-sales support.
Inquire About Our Dredging Robot At YG Machinery
Whether you need a cheap dredging robot for sale, a custom dredging robot for special scenarios, or an environmental dredging robot for eco-friendly projects, YG Machinery has the perfect tailored solution for you. Our robots feature reliable quality, a full range of models, short delivery cycles and comprehensive after-sales support. Contact YG Machinery now for a detailed quotation, professional model selection guidance and real working videos—let our high-performance Mud cleaning robot make your dredging work more efficient, safe and cost-saving.
